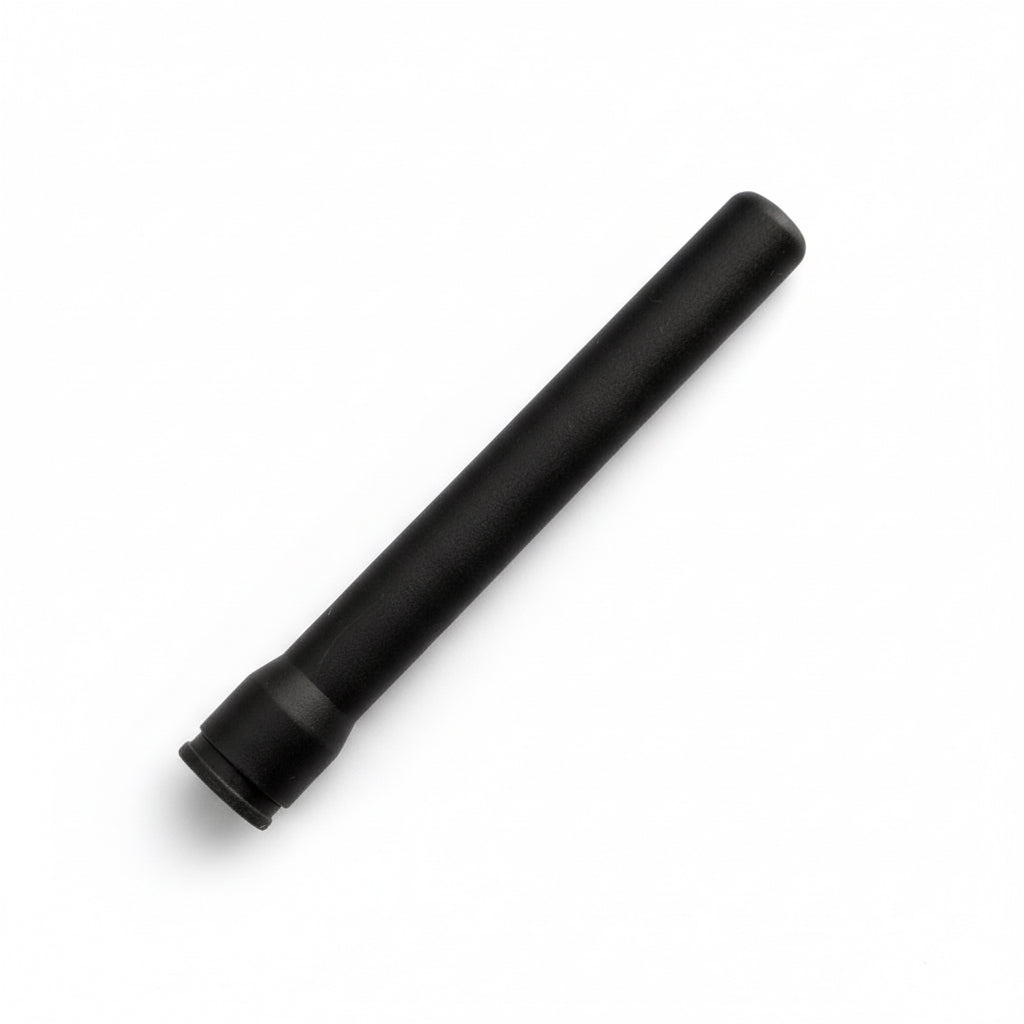

• External LoRa antenna 3dBi with SMA male connector for 433/470/510/868/900/915 MHz frequencies
1 1

Other

External LoRa Antenna with SMA Male - LoRa 433/470/510/868/900/915 Antenna

External LoRa Antenna with SMA Male - LoRa 433/470/510/868/900/915 Antenna

A0012.1

$2.00 USD
$2.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Frequency Band
View full details

External LoRa Antenna with SMA Male

Compact 3dBi external antenna designed for LoRa and LoRaWAN applications. Features SMA male connector with multi-frequency support including 433/470/510/868/900/915MHz. Ideal for IoT devices, gateways, and wireless sensor networks requiring reliable connectivity.

Electrical and Mechanical Specifications

Frequency range 433/470/510/868/900/915MHz
Gain (dBi) 3dBi
VSWR ≤2.0
Input impedance (Ω) 50
Polarization Vertical
Lightning Protection DC Ground
Dimensions (mm) 12*80mm (Lengths may vary for different frequencies)
Input connector type SMA Male / SMA Male Inner Hole (Contact customer service for other connectors)
Maximum bearing power 20W
Operating temperature (°C) -40~85
