FoBE Breakout AS5600

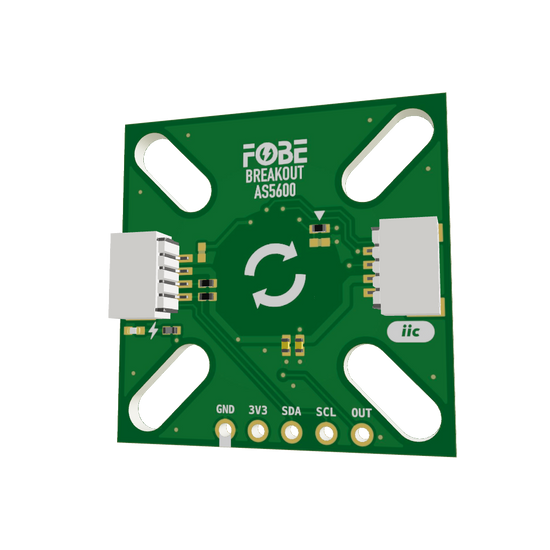

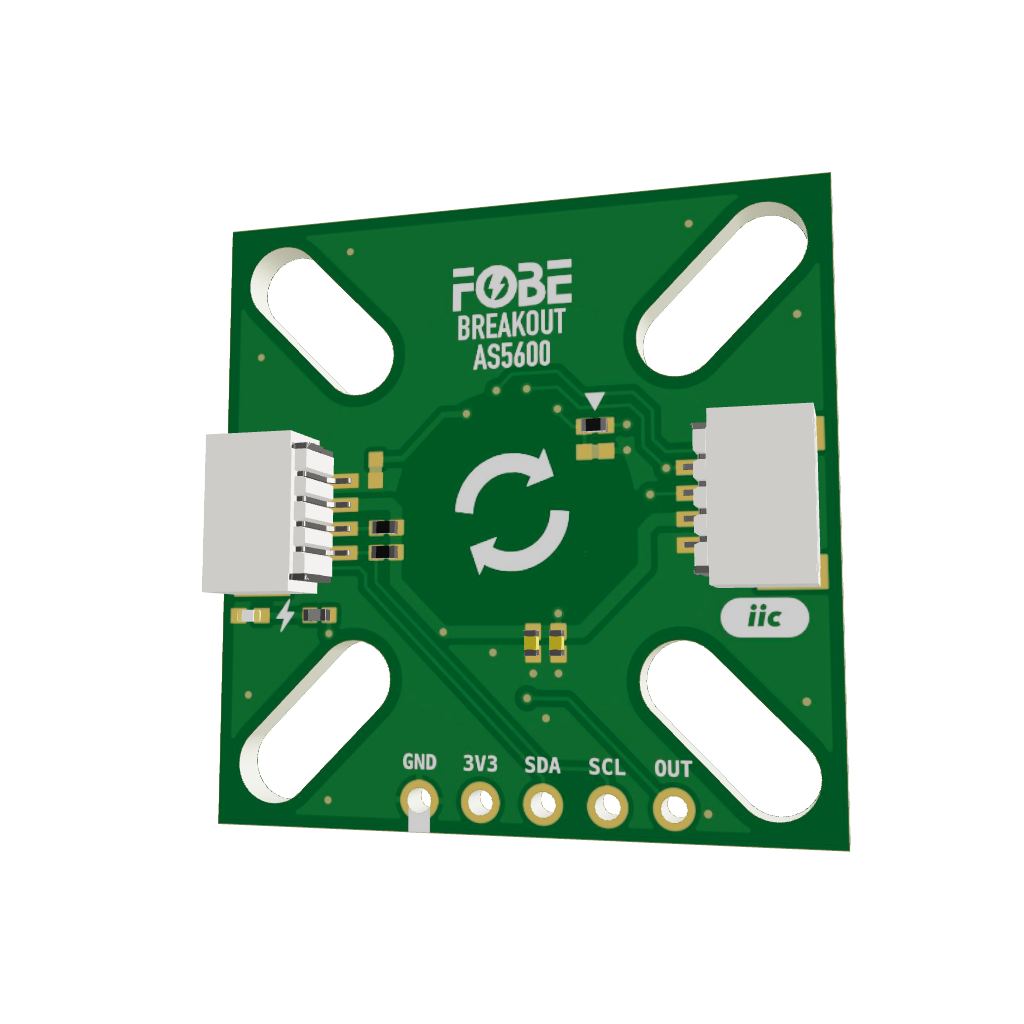

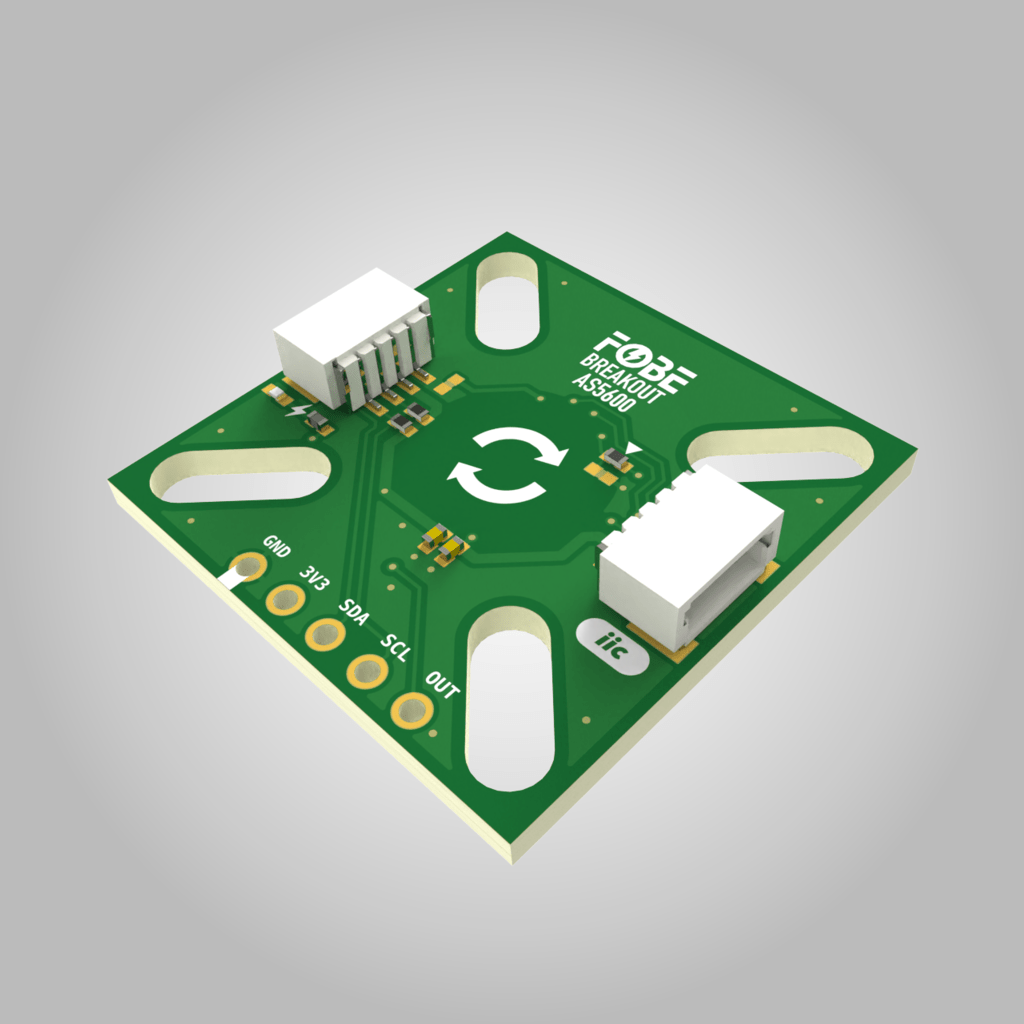

The FoBE Breakout AS5600 integrates the ams AS5600 programmable 12-bit high-resolution contactless magnetic rotary position sensor. The sensor can function as a magnetic potentiometer or magnetic encoder with excellent reliability and durability, providing contactless angle measurement without rotation angle limitations. Multiple connectivity options are provided for easy integration into various applications.

Applications

• Motor closed-loop control systems
• Robot arms and automation equipment
• Tripod heads and camera mounts
• Industrial machine control and positioning

Key Features

AS5600

• Contactless angle measurement for highest reliability and durability
• 12-bit DAC output resolution for high precision
• Programmable angular range from 18° up to 360°
• Simple user-programmable start and stop positions via I²C interface
• Selectable output: analog ratiometric to VDD or PWM-encoded digital
• Automatic magnet detection for easy setup
• Low-power consumption with automatic low-power mode entry
• Wide temperature range: -40°C to +125°C
• Robust environmental tolerance
• Non-contact operation with no rotation angle limitation

Connectivity

• MFP-IIC interface (JST-SH1.0 4-Pin)

• 5 x 2.54mm Pin Header
