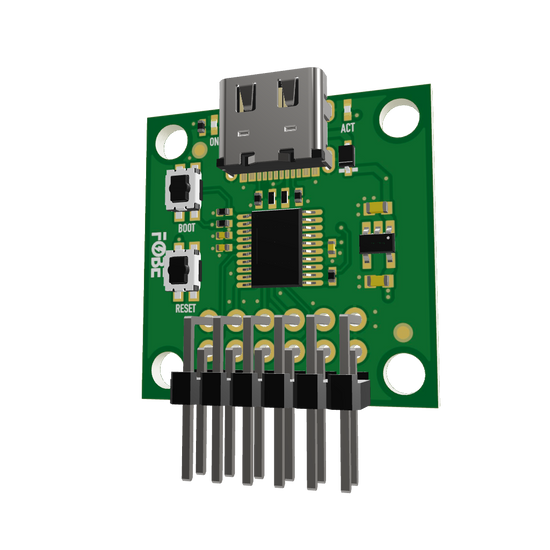

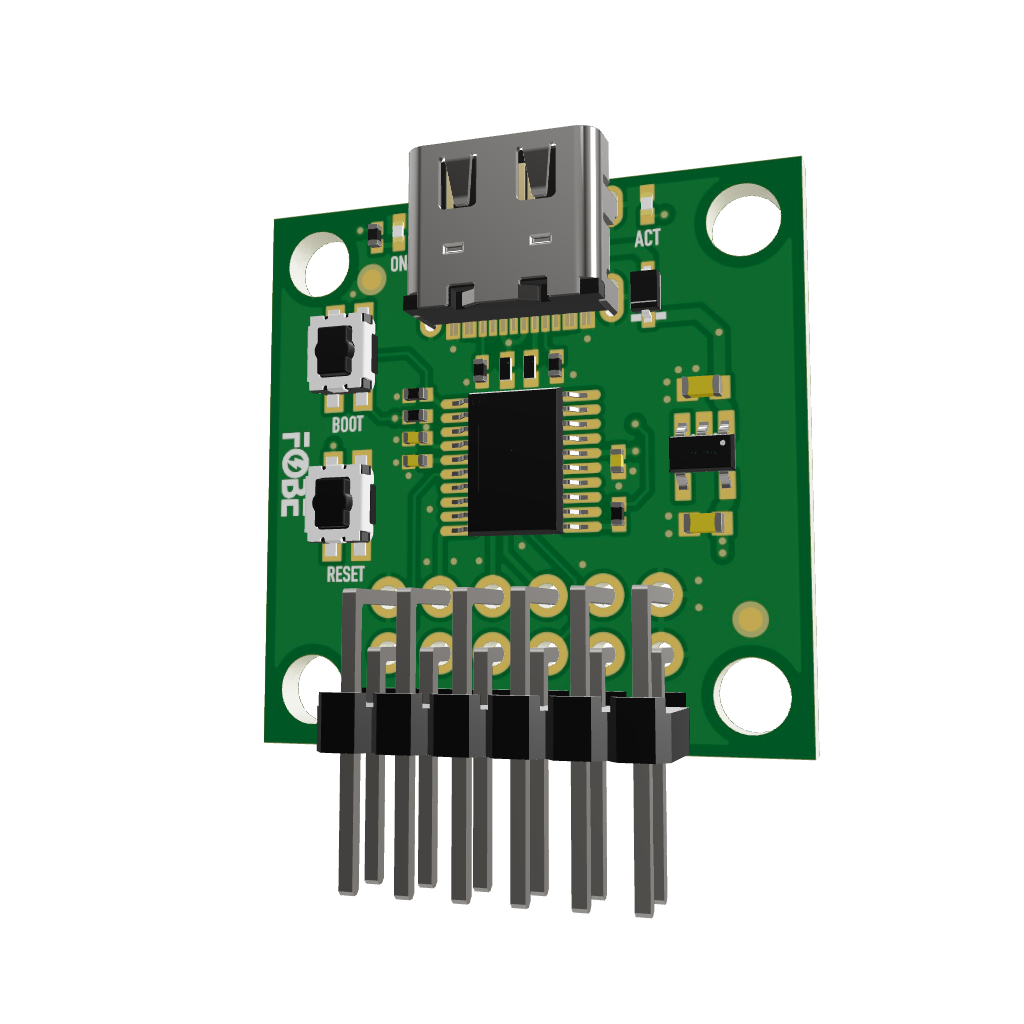

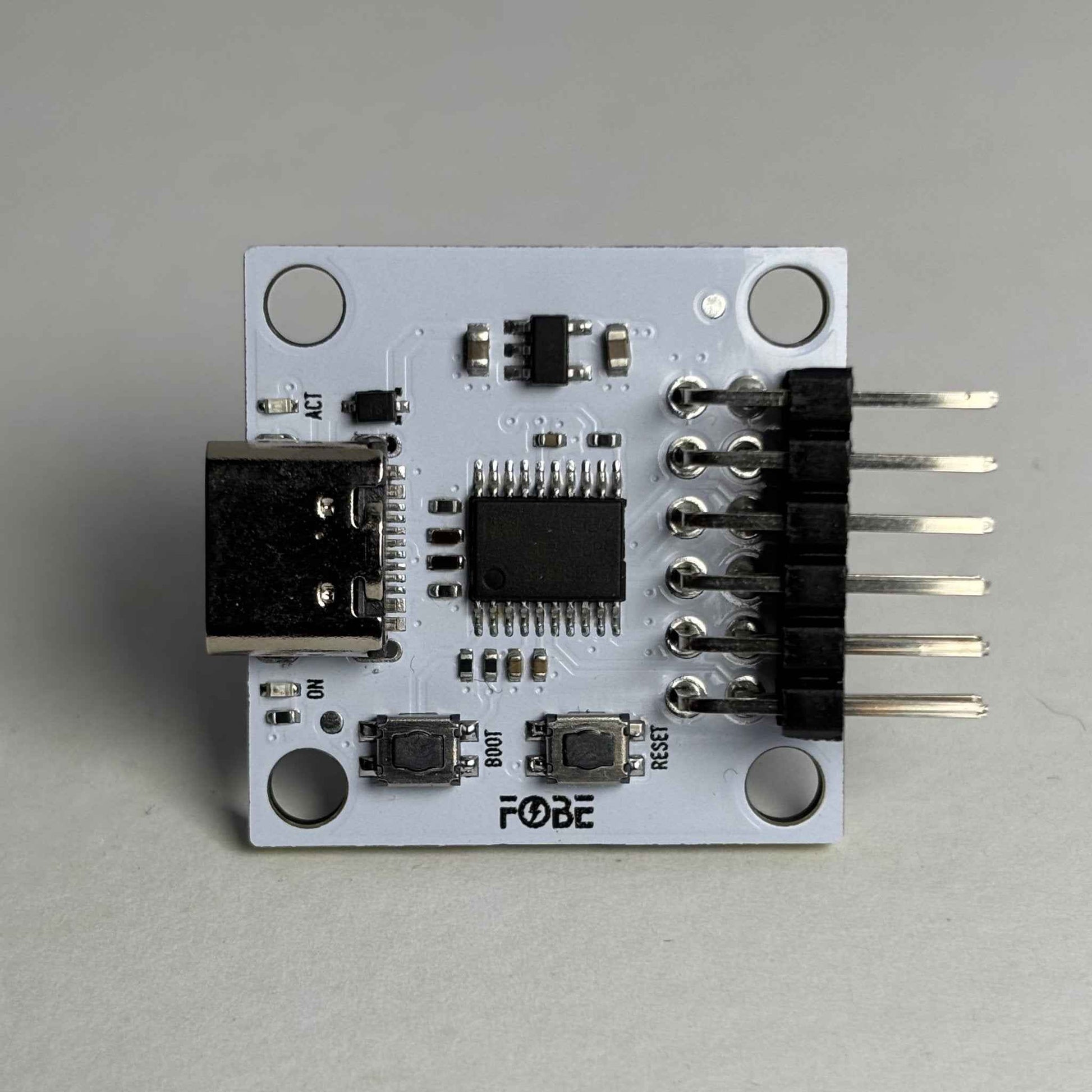

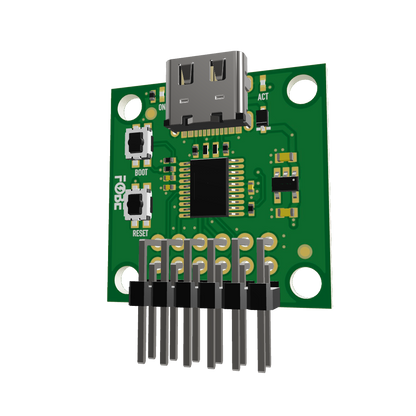

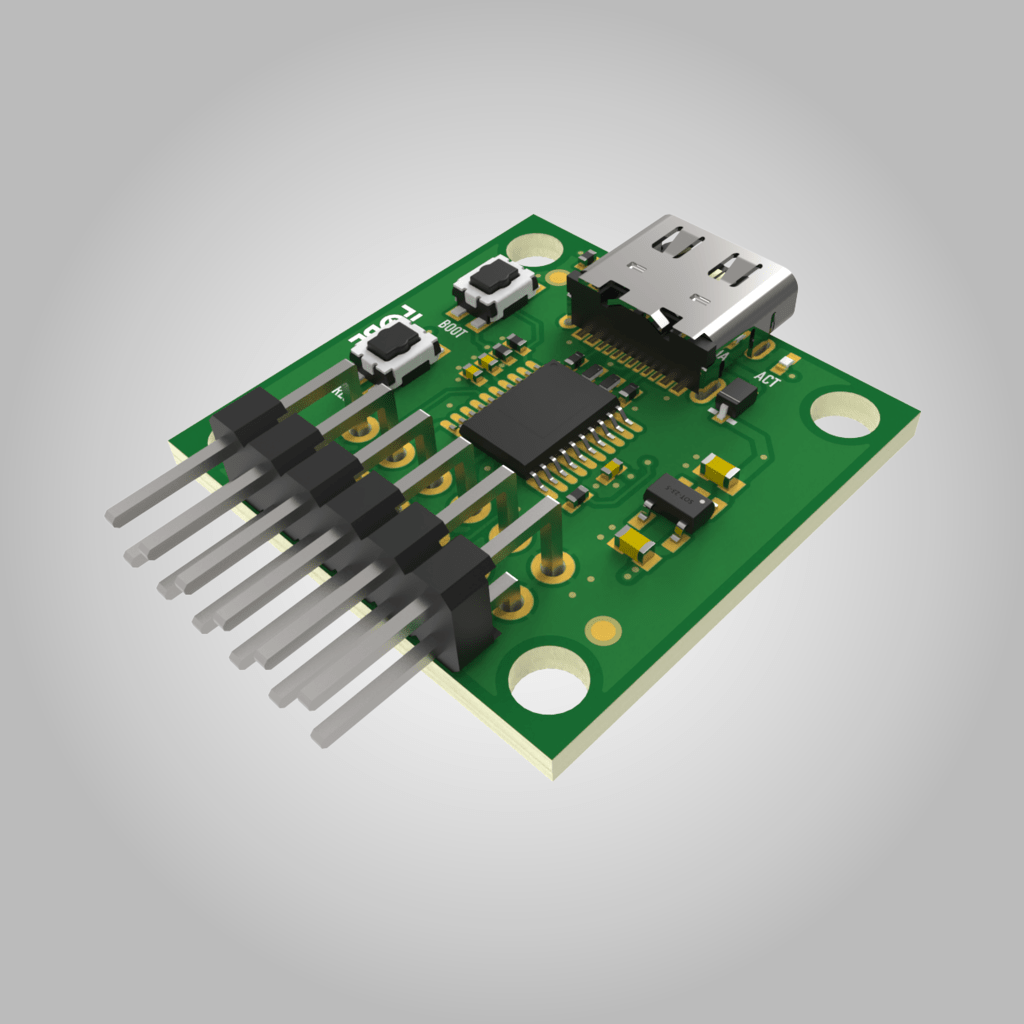

FoBE Breakout CMSIS-DAP Lite

The FoBE Breakout CMSIS-DAP Lite integrates the WCH CH32V203F6P6 microcontroller running CMSIS-DAP firmware, providing a professional debugging and programming solution for ARM Cortex-M based microcontrollers. The module supports JTAG, SWD debugging interfaces, virtual serial port communication, and offers both 3.3V and 5V power output capabilities for target board supply.

Applications

• ARM Cortex-M microcontroller debugging and programming
• STM32, nRF51/52, and other Cortex-M development
• Educational and prototyping projects
• Firmware development and testing
• Hardware-in-the-loop testing systems

Key Features

CMSIS-DAP Interface

• Compatible with all ARM Cortex-M based microcontrollers
• Support for STM32, nRF51/52, and other Cortex-M series
• JTAG and SWD debugging interfaces
• Virtual serial port communication
• Drag-and-drop programming support
• STLINK compatible and upgradeable firmware

Development Environment Support

• Keil/MDK development environment
• IAR Embedded Workbench
• OpenOCD open-source debugging tool
• ARM Mbed online compiler

Power Supply

• USB-C power input: 5V
• Dual voltage output: 3.3V and 5V
• Direct target board power supply capability


Connectivity

• 12-Pin 2.54mm Header Interface
• USB-C connector for host communication
• Status LED indicators
