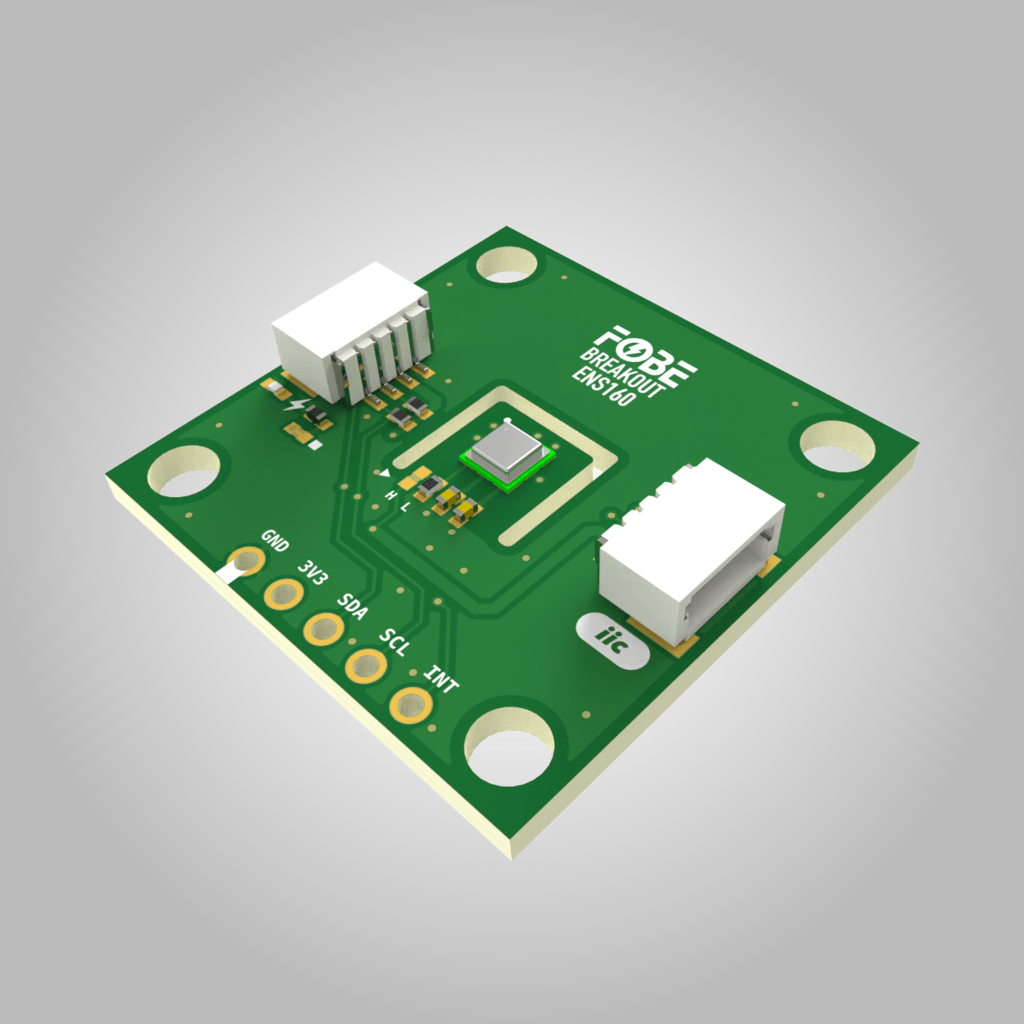

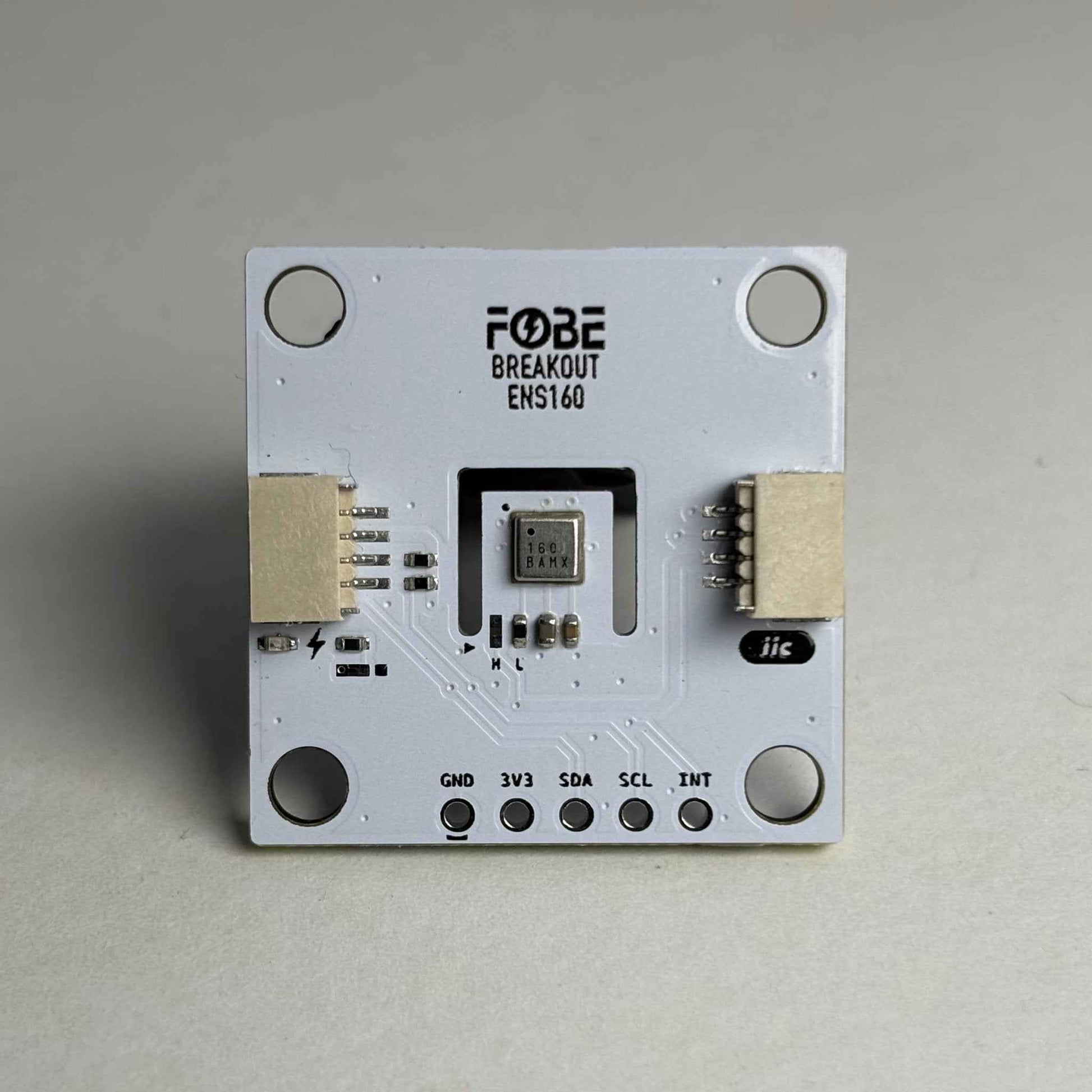

FoBE Breakout ENS160

The FoBE Breakout ENS160 integrates the ScioSense ENS160 digital multi-gas sensor, specifically designed for indoor air quality monitoring. It features TrueVOC® technology for superior VOC detection with independent hotplate control, enabling detection of a wide range of volatile organic compounds including ethanol, toluene, hydrogen and oxidizing gases. Multiple connectivity options are provided for easy integration into various applications.

Applications

• Air purification and home automation devices
• Environmental pollution detection systems
• HVAC and ventilation control systems
• Building automation and smart thermostats
• Electrical appliances and range hoods

Key Features

ENS160

• TrueVOC® technology for industry-leading VOC detection
• Direct output of eCO2, TVOC and AQI values
• Independent heater control for highest VOC selectivity
• Outstanding background discrimination capability
• Superior output stability over temperature and humidity ranges
• Immunity to humidity and ozone interference
• Effective ozone compensation
• Operating temperature: -40°C to +85°C
• Operating humidity: 5% to 95% RH
• Built-in automatic baseline correction

Connectivity

• MFP-IIC interface (JST-SH1.0 4-Pin)

• 5 x 2.54mm Pin Header

Hardware diagram

Mechanical dimensions

Resources

[PDF] FoBE Breakout ENS160 Datasheet

[PDF] FoBE Breakout ENS160 Schematic

[PDF] FoBE Breakout ENS160 Dimension

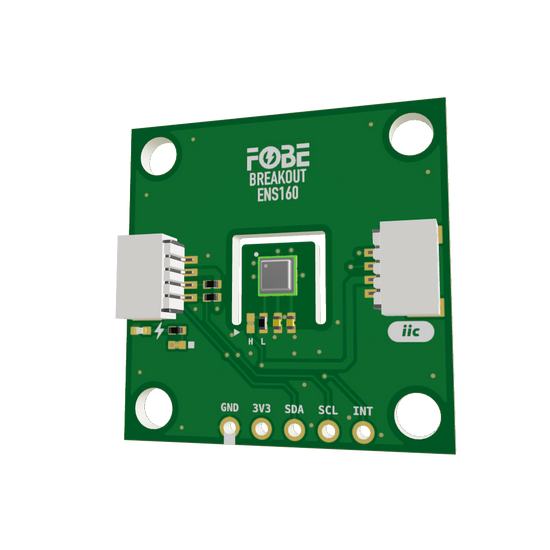

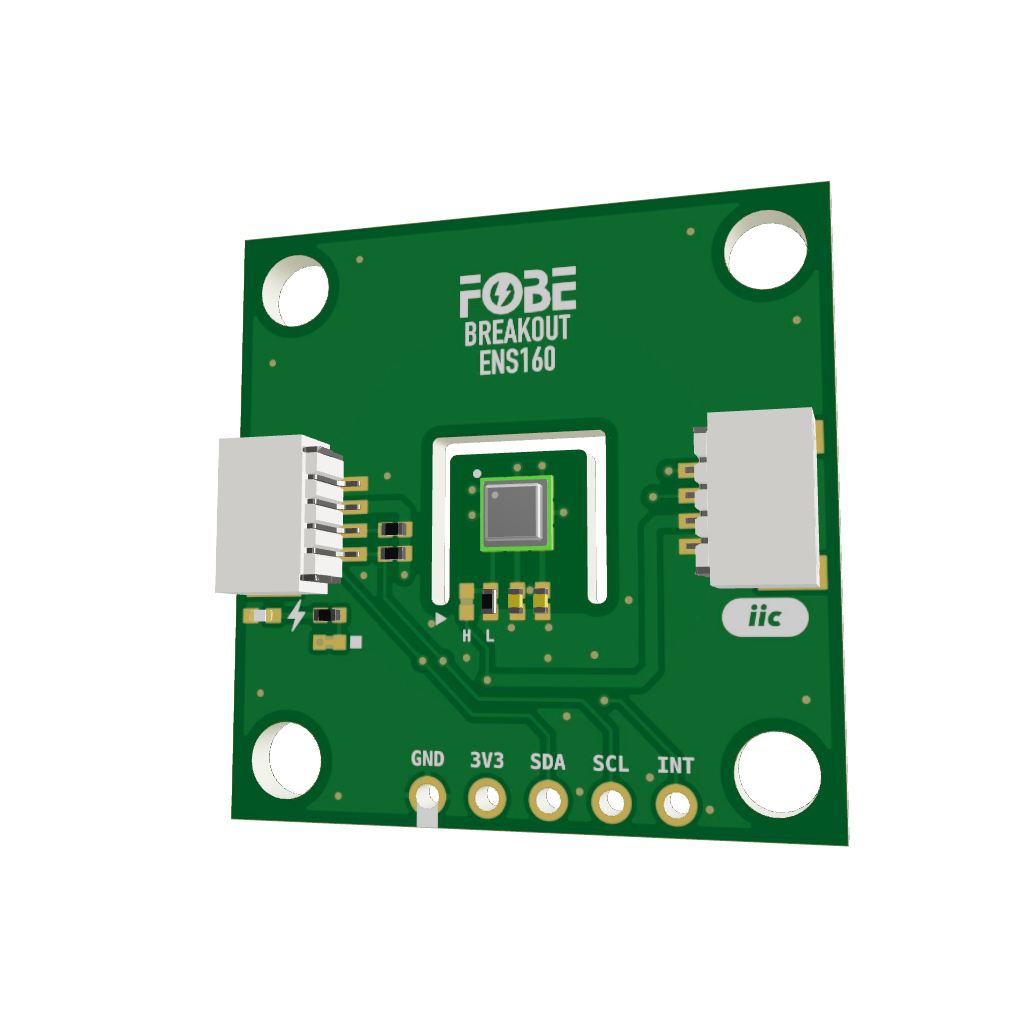

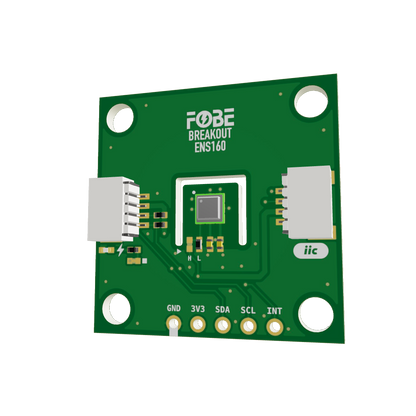

[OBJ] FoBE Breakout ENS160 3D Model

Packing List
