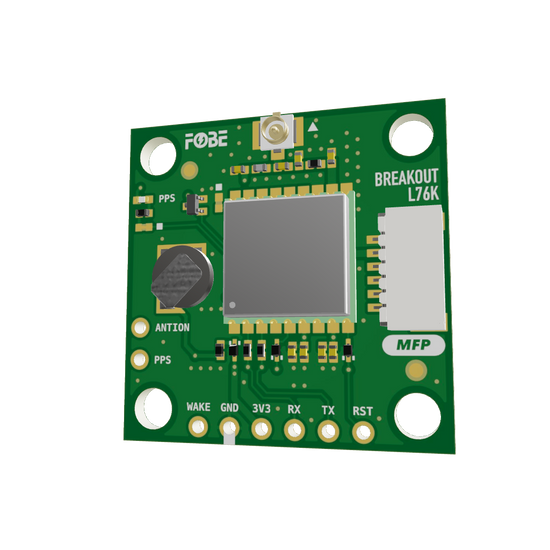

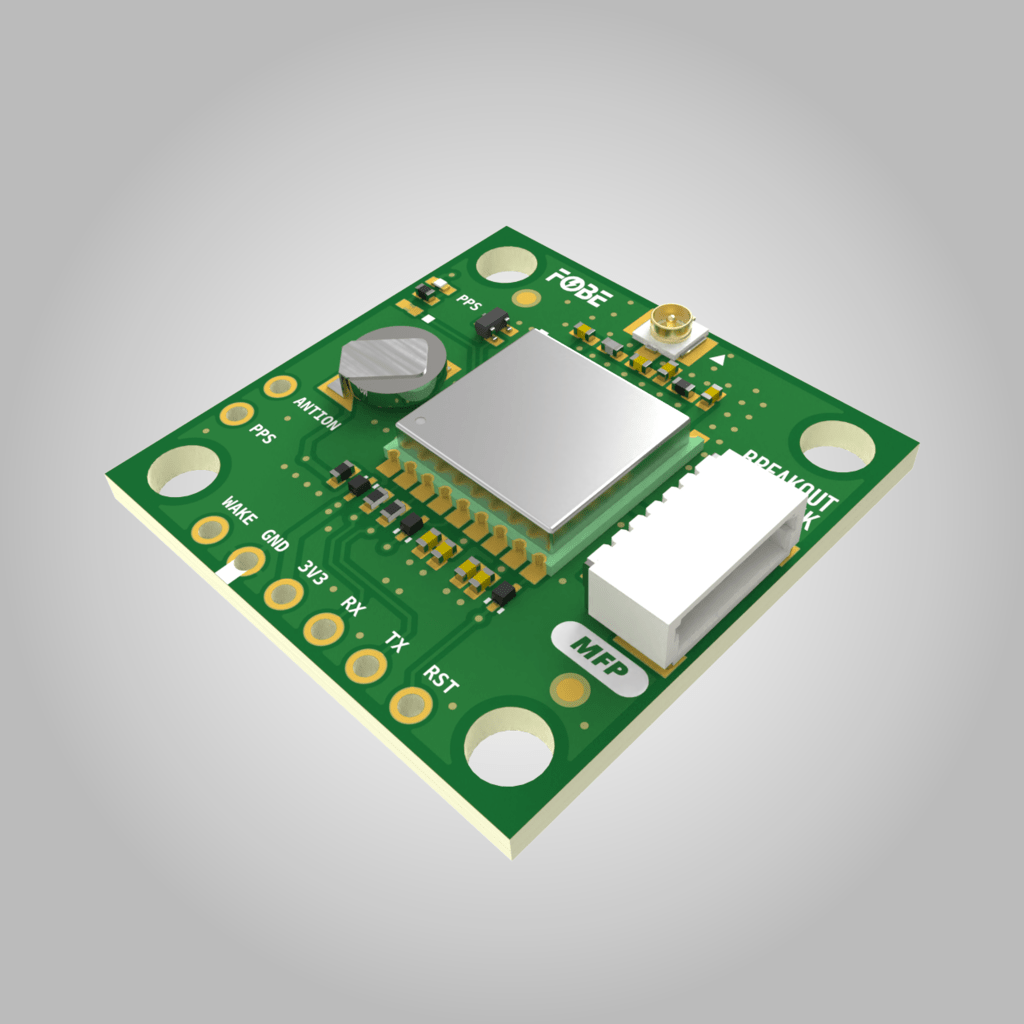

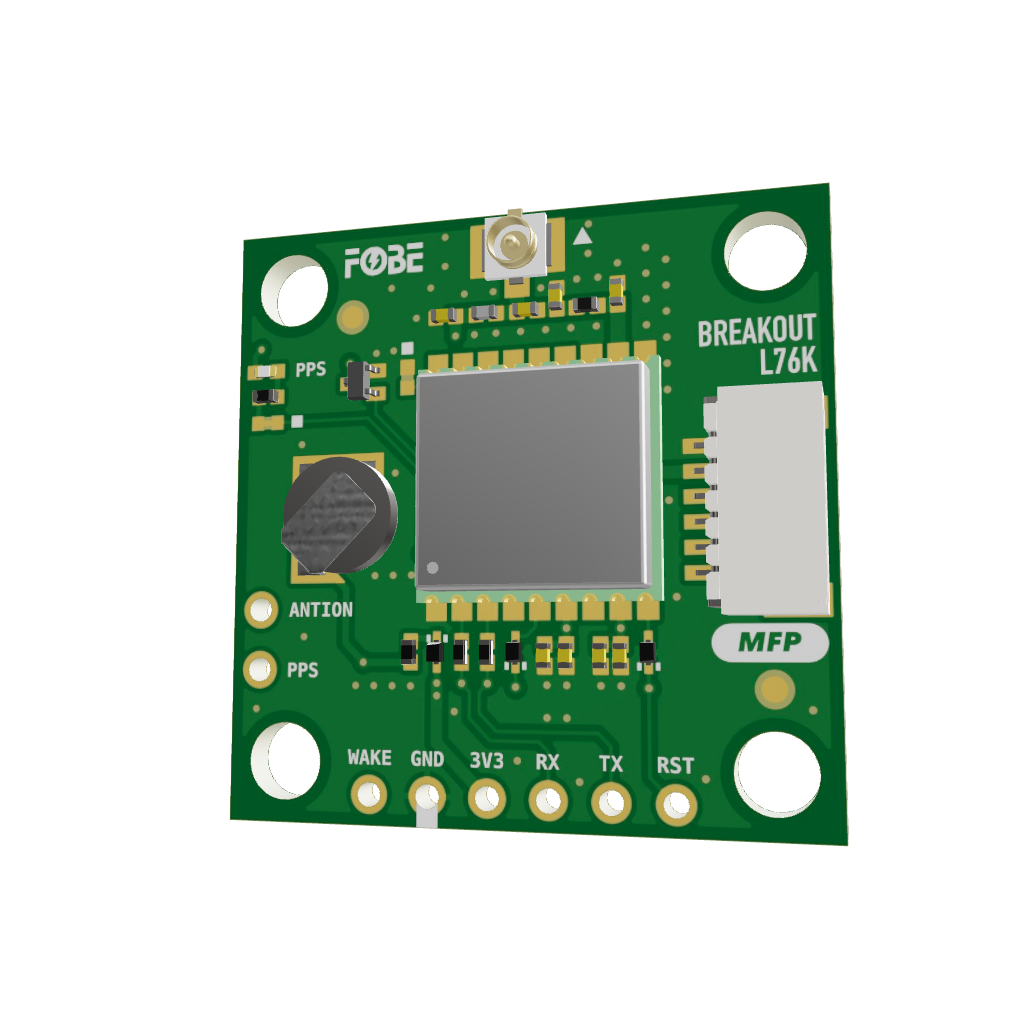

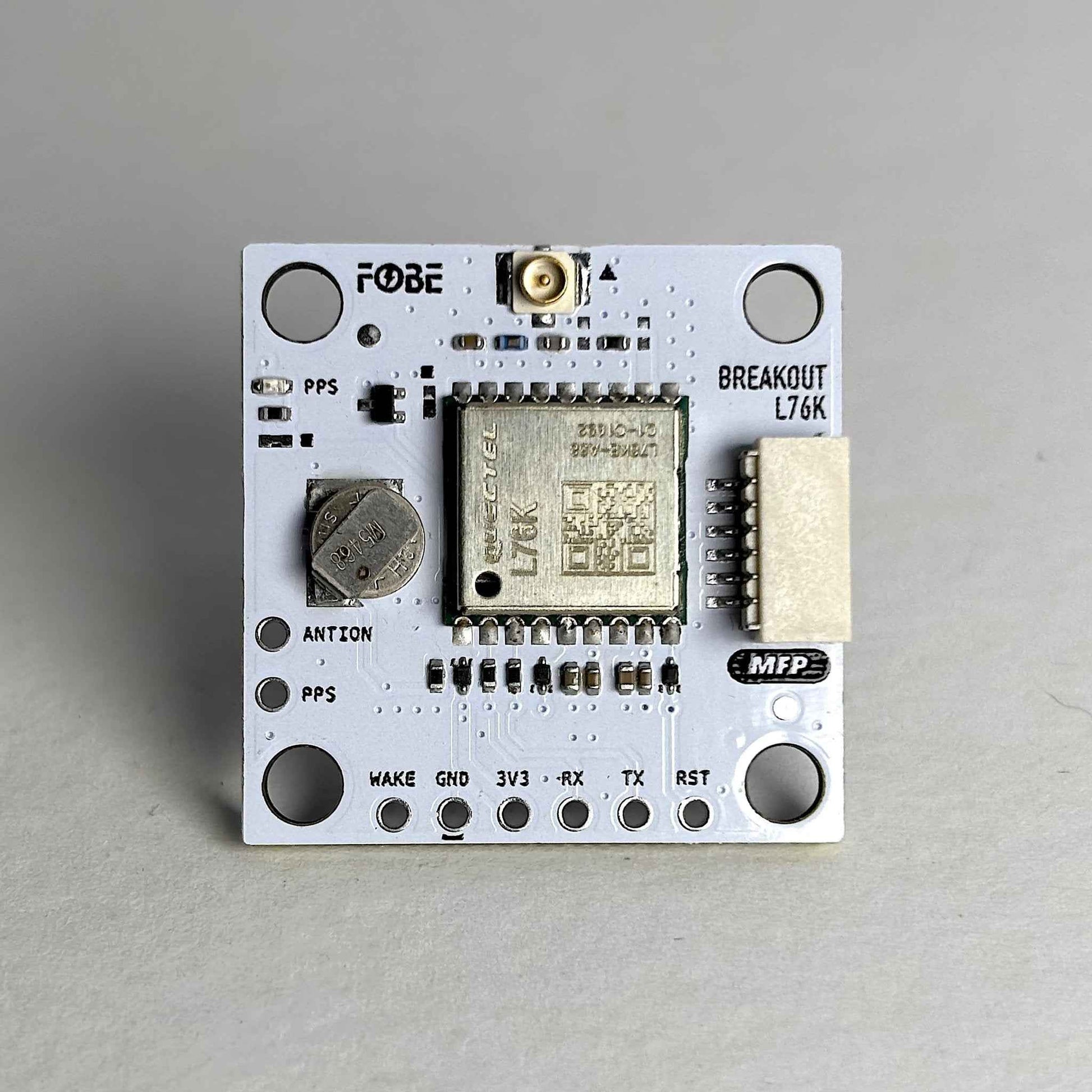

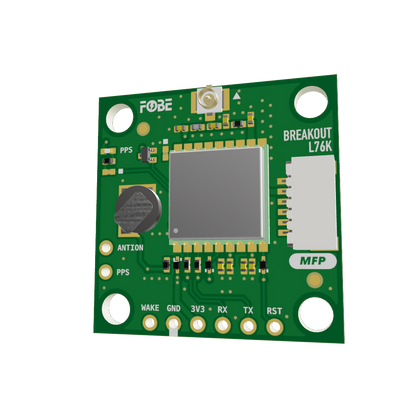

FoBE Breakout L76K

The FoBE Breakout L76K integrates the Quectel L76K multi-constellation GNSS receiver, supporting GPS, BeiDou, GLONASS, Galileo, and QZSS satellite systems. The module provides fast and accurate positioning with AGNSS support, featuring both multi-system joint positioning and single system independent positioning capabilities. Multiple connectivity options are provided for easy integration into various applications.

Applications

• Mobile applications requiring precise geolocation capabilities
• Asset tracking and fleet management systems
• Navigation and positioning devices
• IoT applications with location awareness
• Geofencing and location-based services

Key Features

L76K GNSS Receiver

• Multi-constellation support: GPS, BeiDou, GLONASS
• Multi-system joint positioning and single system positioning modes
• AGNSS (Assisted GNSS) function for faster positioning
• High-performance positioning with excellent accuracy
• Low power consumption with standby mode support
• Fast Time-To-First-Fix (TTFF) performance
• Built-in jamming detection and mitigation
• Wide operating temperature range

Power Management

• Built-in 3.1V rechargeable button cell battery for RTC
• Power supply: 3.3V via connector
• Low-power standby mode with wake functionality
• Reset functionality for system recovery

Antenna Support

• Onboard U.FL antenna connector
• Support for passive and active antennas
• Optional active antenna power supply

Connectivity

• MFP (JST-SH1.0 6-Pin) Interface
  • Power supply (3.3V)
  • UART interface for data communication
  • Wake and reset control pins
• 6-Pin 2.54mm Header Holes

Hardware diagram

Mechanical dimensions

Resources

[PDF] FoBE Breakout L76K Datasheet

[PDF] FoBE Breakout L76K Schematic

[PDF] FoBE Breakout L76K Dimension

[OBJ] FoBE Breakout L76K 3D Model

Packing List
