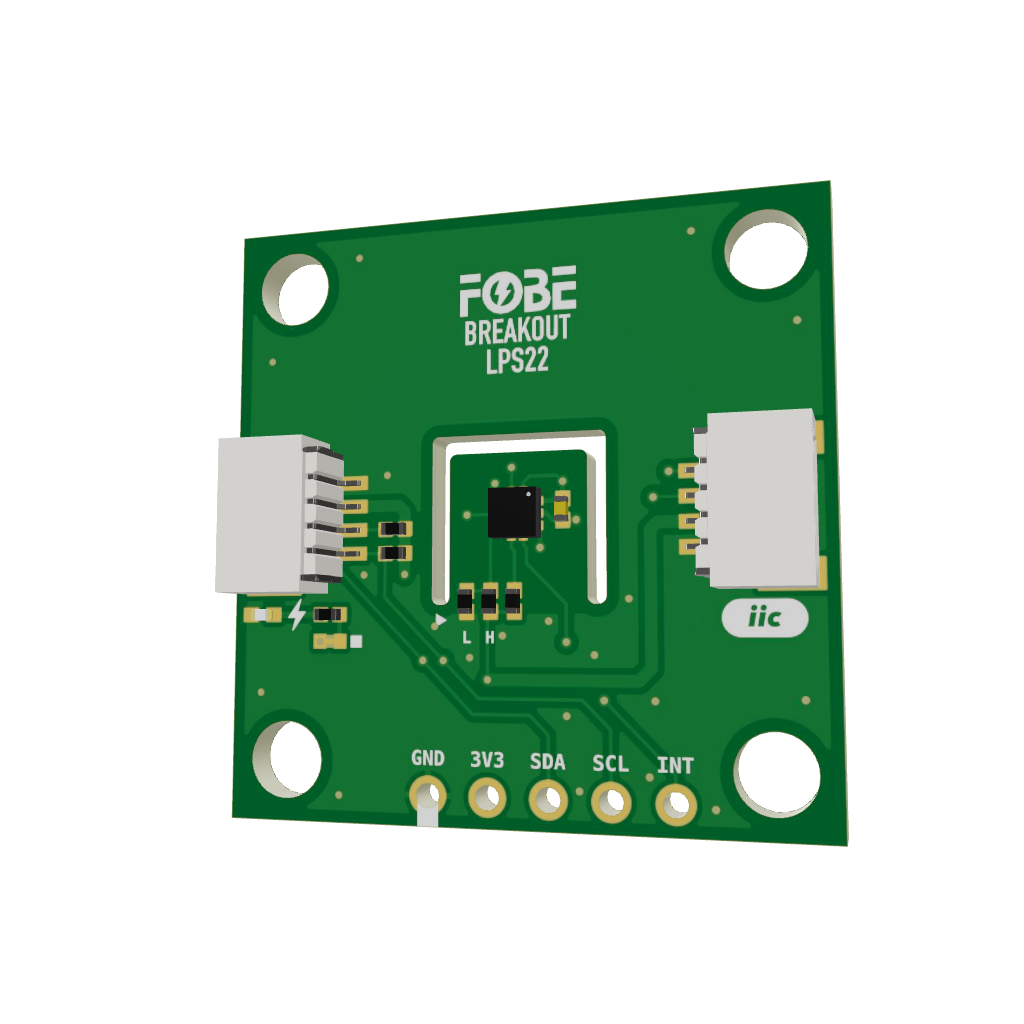

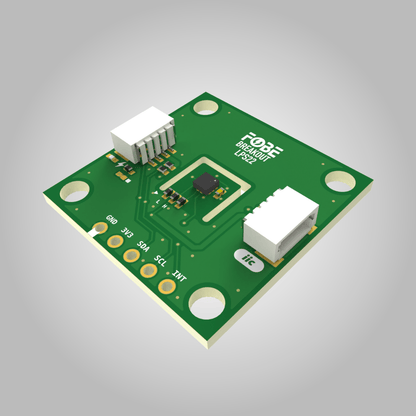

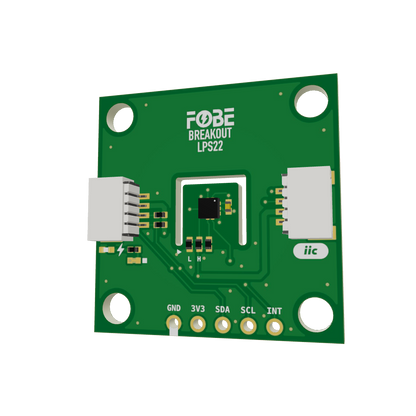

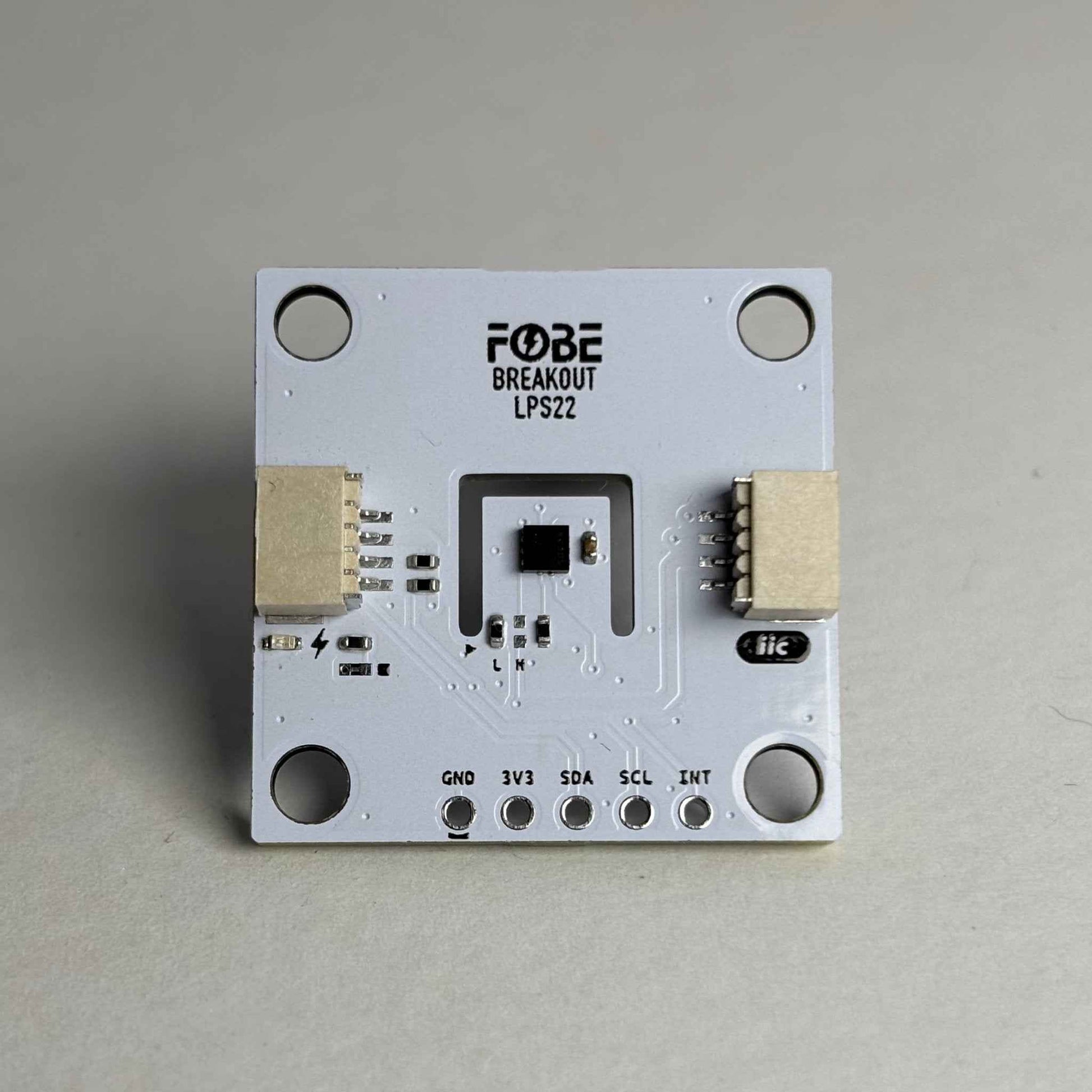

FoBE Breakout LPS22

The FoBE Breakout LPS22 integrates the ST LPS22HB digital barometric pressure sensor, supporting data output rates up to 75Hz with 24-bit pressure and 16-bit temperature data output. Multiple connectivity options are provided for easy integration into various applications.

Applications

• Altimeters and barometers for portable devices
• Weather station equipment

Key Features

• LPS22HB
  • 260 to 1260 hPa absolute pressure range
  • High overpressure capability: 20x full-scale
  • Embedded temperature compensation
  • 24-bit pressure data output
  • 16-bit temperature data output
  • ODR from 1 Hz to 75 Hz
  • Embedded FIFO
  • Interrupt functions: Data Ready, FIFO flags, pressure thresholds
  • High shock survivability: 22,000 g
  • Small and thin package
  • ECOPACK® lead-free compliant

• Connectivity
  • MFP-IIC interface (JST-SH1.0 4-Pin)
  • 5 x 2.54mm Pin Header

Hardware diagram

The following figure illustrates the FoBE Breakout LPS22 hardware diagram

Mechanical dimensions

FoBE Breakout LPS22 is a single-sided 25.4mm x 25.4mm (1" x 1") 1.6mm thick PCB with two SH1.0 4-pin connectors and a set of 5-pin 2.54mm header holes. Fixing by 4 x 1.6mm Screw holes

Resources

Packing List
