FoBE Breakout OLED 0.42 inch

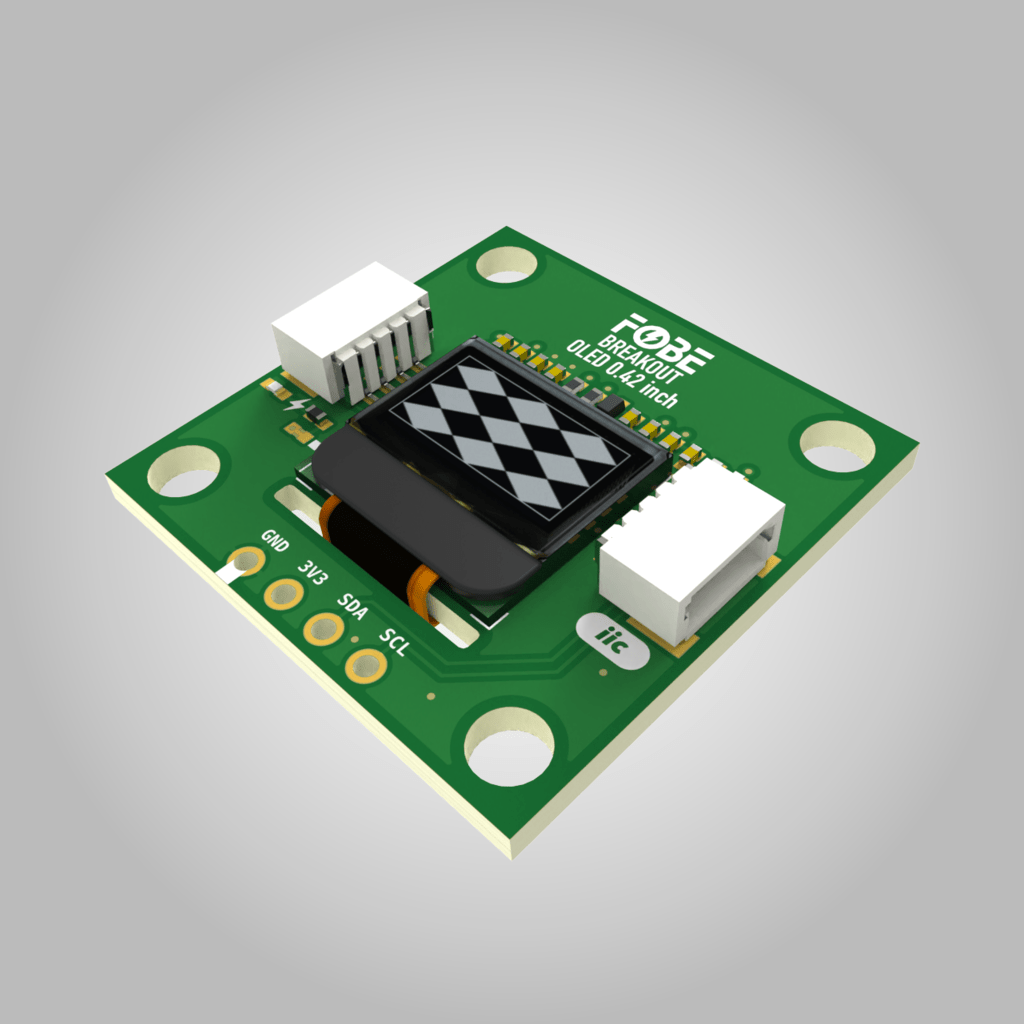

The FoBE Breakout OLED 0.42 inch integrates a 0.42 inch 72x40 pixels graphic monochrome OLED display with the SSD1315 driver IC. This ultra-compact display module is perfect for low-power applications requiring visual feedback. Multiple connectivity options are provided for easy integration into various applications.

Applications

• Electronic Products
• Medical apparatus and equipment
• Traffic Safety
• Wearable devices

Key Features

SSD1315

• 0.42 inch PM OLED
• Resolution: 72x40 pixels
• Display color: Monochrome (White)
• Interface: 4-wire I2C
• Operating Temperature: -40 to +85 °C
• Low power consumption
• High contrast ratio
• Wide viewing angle
• Fast response time

Connectivity

• MFP-IIC interface (JST-SH1.0 4-Pin)

• 4 x 2.54mm Pin Header

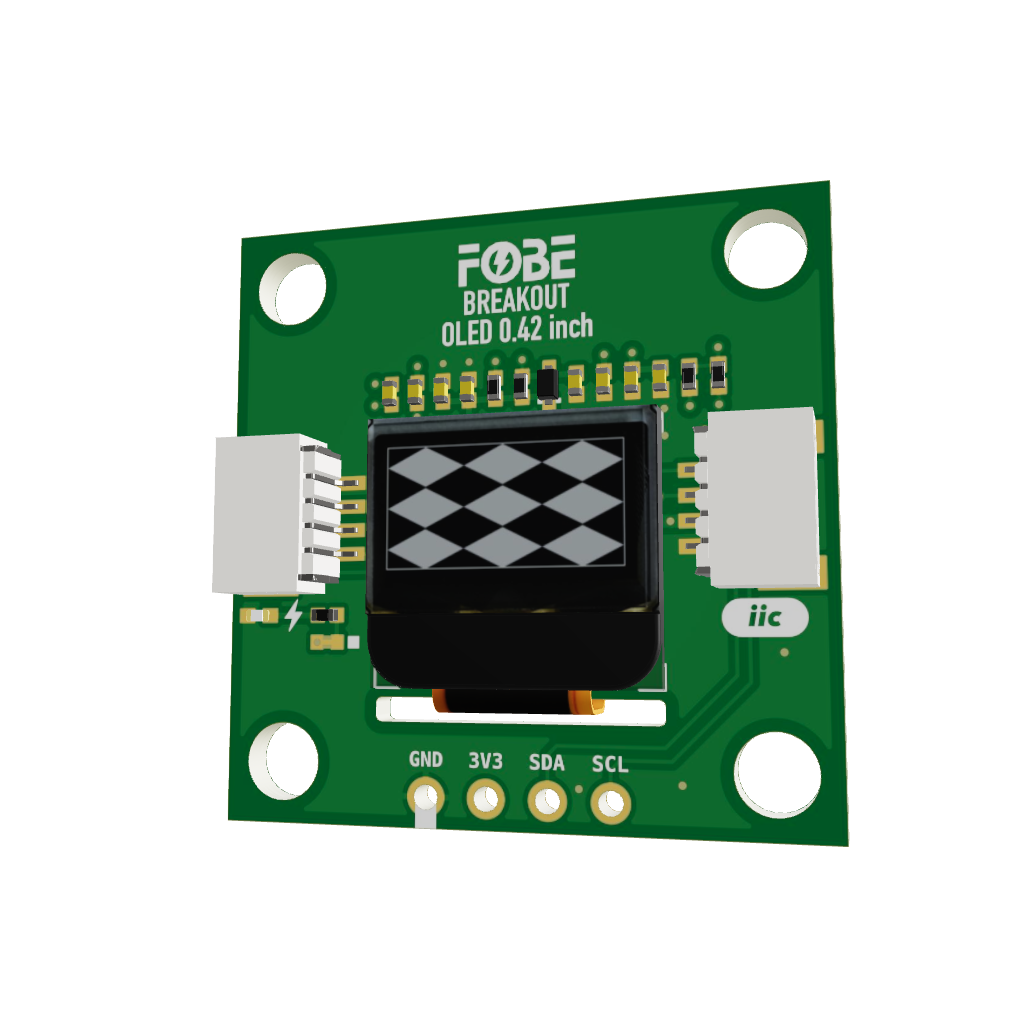

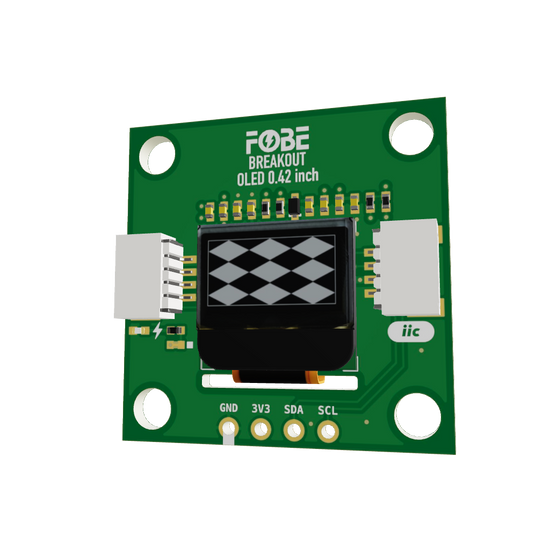

Hardware diagram

Packing List
