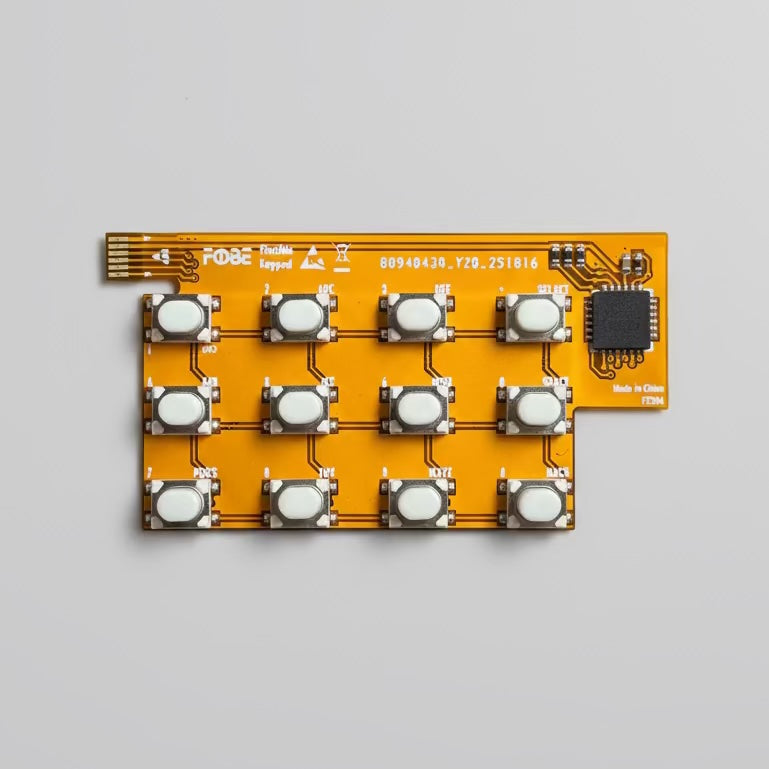

• FoBE Flexible Keypad T9 typing module with PET sticker connected to development board

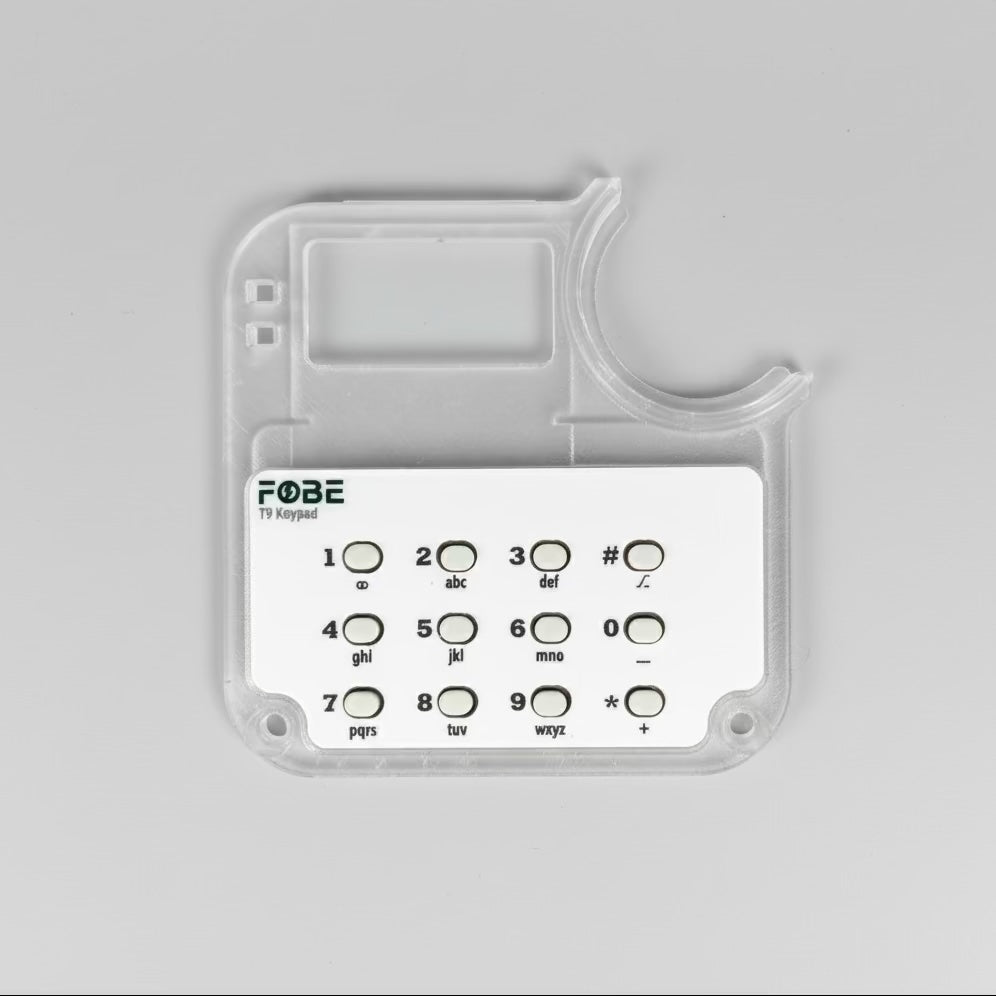

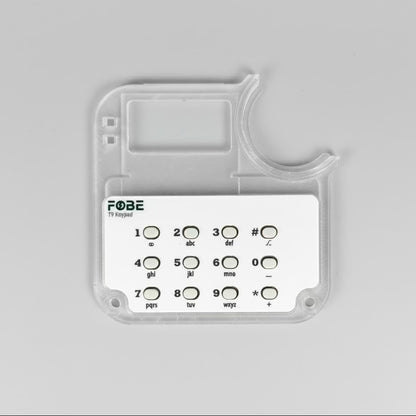

  • FoBE Flexible Keypad 12-key T9 input module with Translucent resin panel

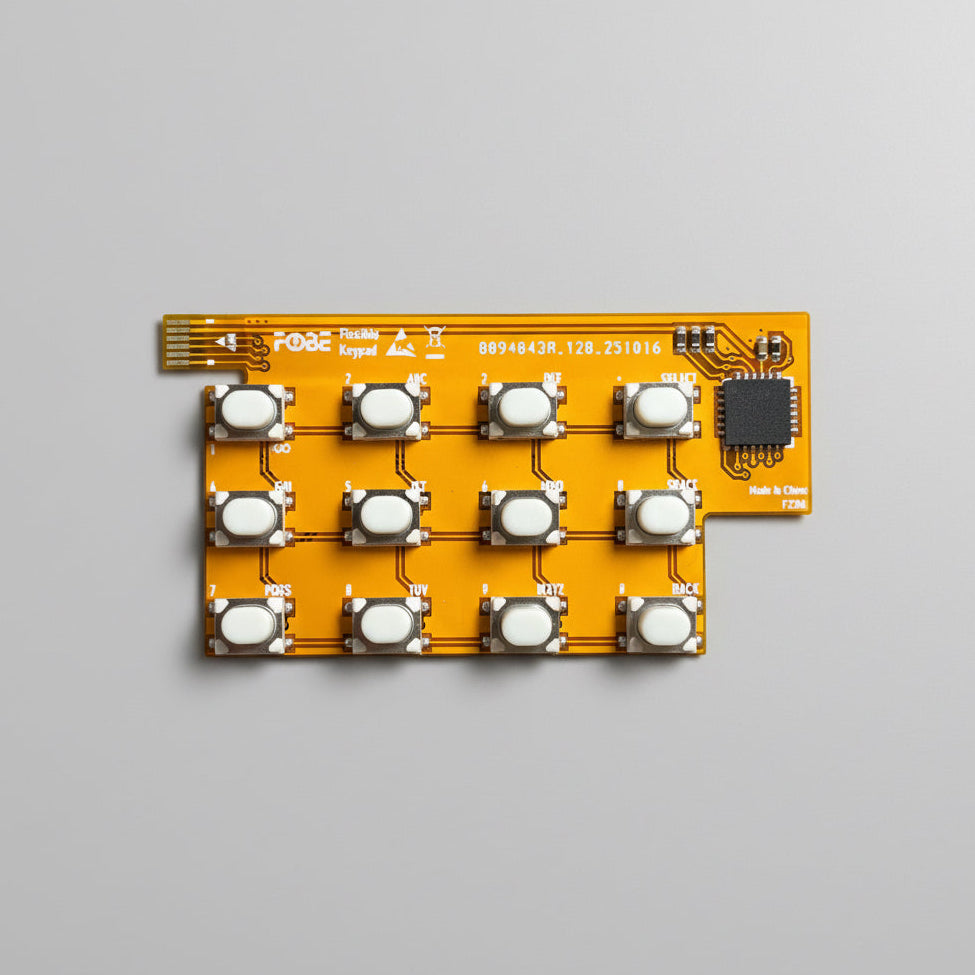

  • FoBE Flexible Keypad FPC expansion module with TCA8418 key scanning chip

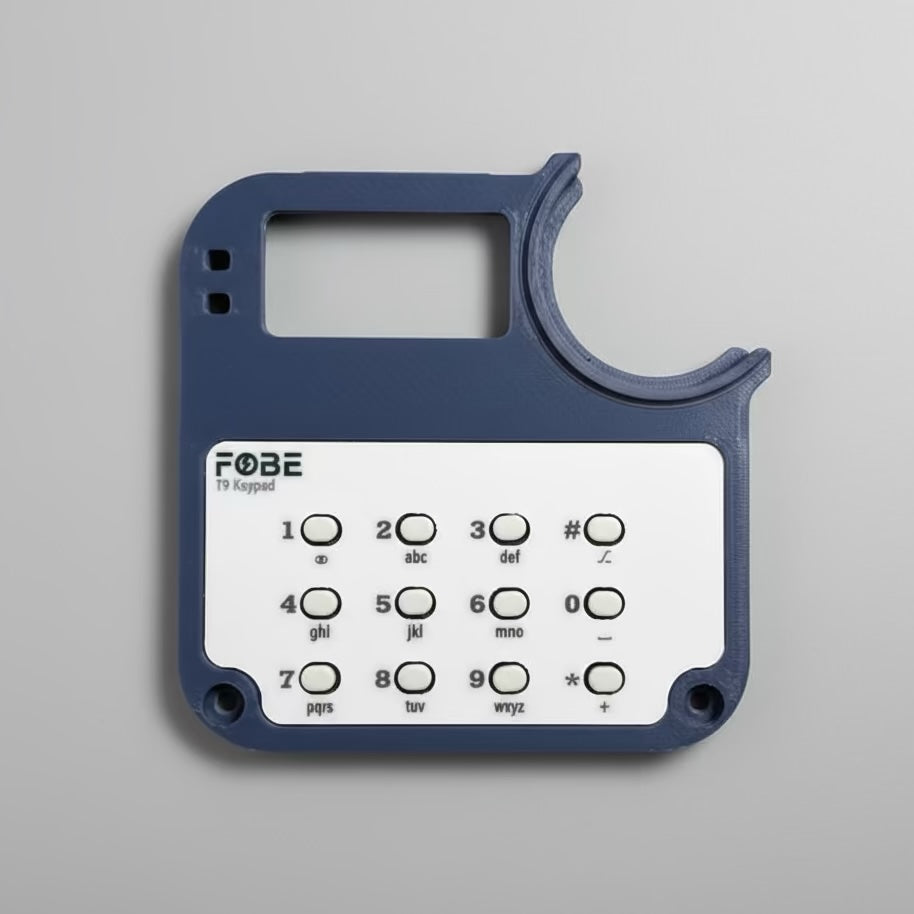

  • FoBE Flexible Keypad I2C module with PLA panel connected to development board
1 4

FoBE Studio

FoBE Flexible Keypad - Bringing T9 Typing FPC Expansion Module

FoBE Flexible Keypad - Bringing T9 Typing FPC Expansion Module

F2306.1

$4.80 USD
$4.80 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Package
View full details

FoBE Flexible Keypad(F2306)

FoBE Flexible Keypad is a 12-key I2C T9 input expansion module based on a Flexible Printed Circuit (FPC). It is designed for FoBE development kits equipped with an MFP expansion interface with a 0.5 mm pitch.

This expansion module uses the TCA8418 as the key scanning IC, supporting 1 MHz fast-mode I2C communication, with built-in debounce and switch noise immunity.

Product View

MFP Connector Pinout

Module Pins GPIO Pin
1 GND
2 3.3V
3 I2C_SDA
4 I2C_SCL
5 INT
6 RESET


Packing List

Part Quantity
FoBE Flexible Keypad Module 1 Included in all Kits
Custom PET Sticker 1 Included in all Kits

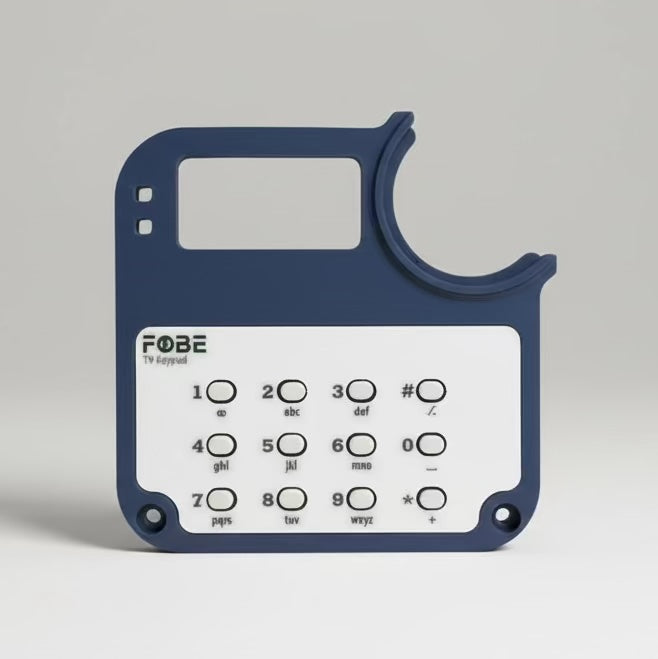

Blue PLA Panel 1 Included only in Blue PLA Panel version

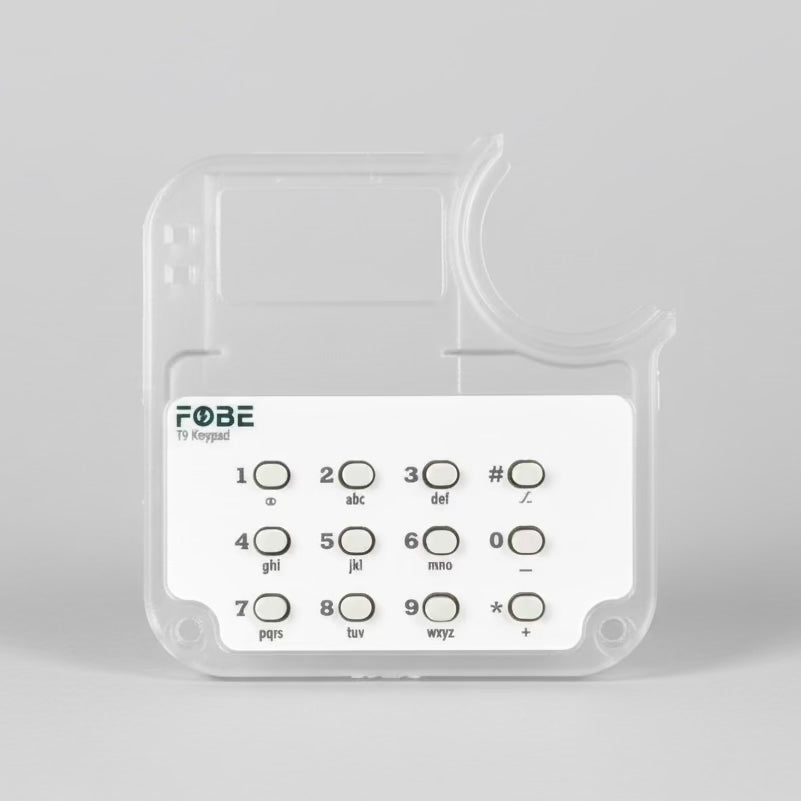

Translucent Resin (SLA) Panel 1 Only with Translucent Resin (SLA) Panel version

Getting Started with FoBE Flexible Keypad

Refer to the documentation for further details about this product.
