FoBE Mesh Tracker C1 Cases

3D-printed protective cases designed specifically for the FoBE Mesh Tracker C1 (F2102) development board. Available in two manufacturing technologies and two antenna configurations to perfectly match your project requirements.

Material Options

• Blue PLA (FDM) – Durable and lightweight thermoplastic, manufactured using Fused Deposition Modeling technology.

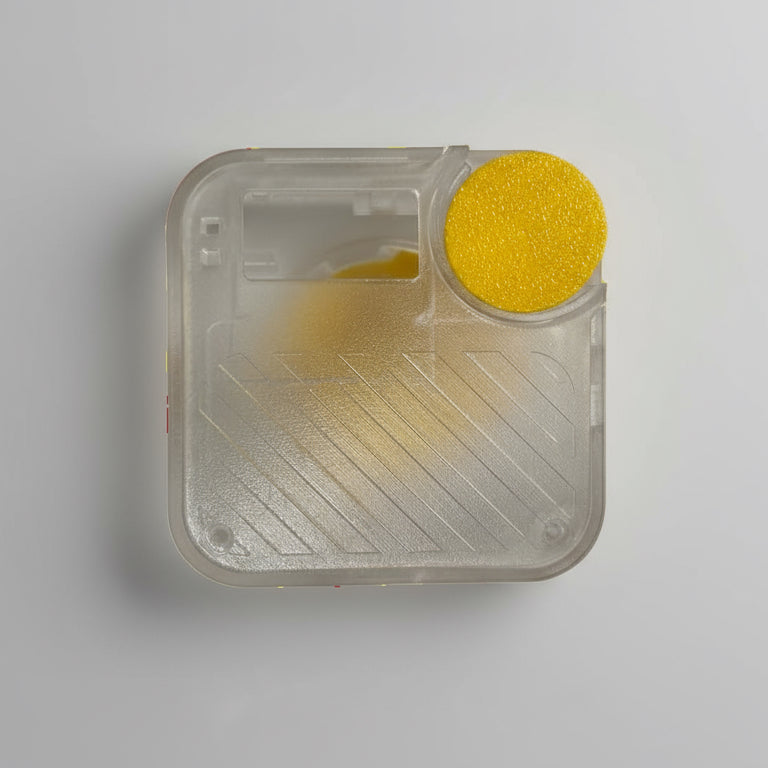

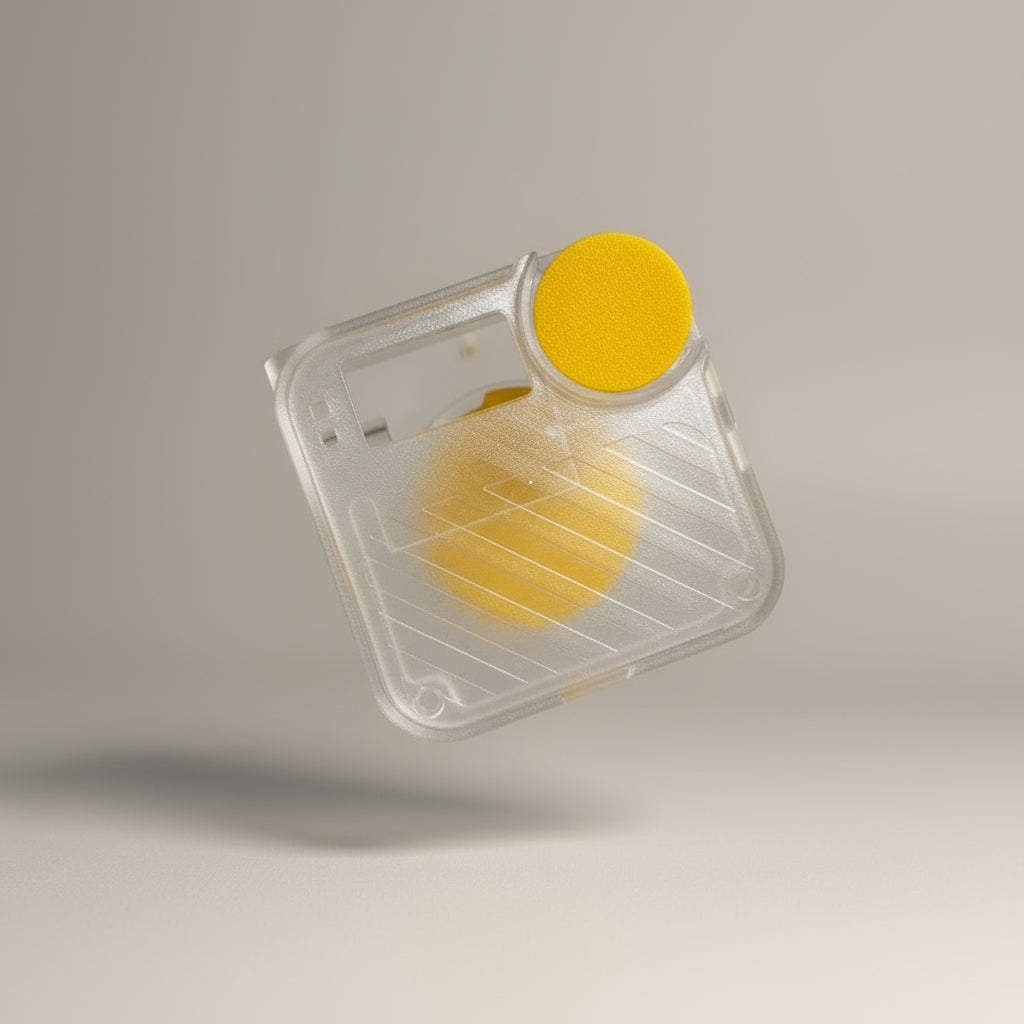

• Translucent Resin (SLA) – Premium clear finish produced with Stereolithography technology.

Antenna Configurations

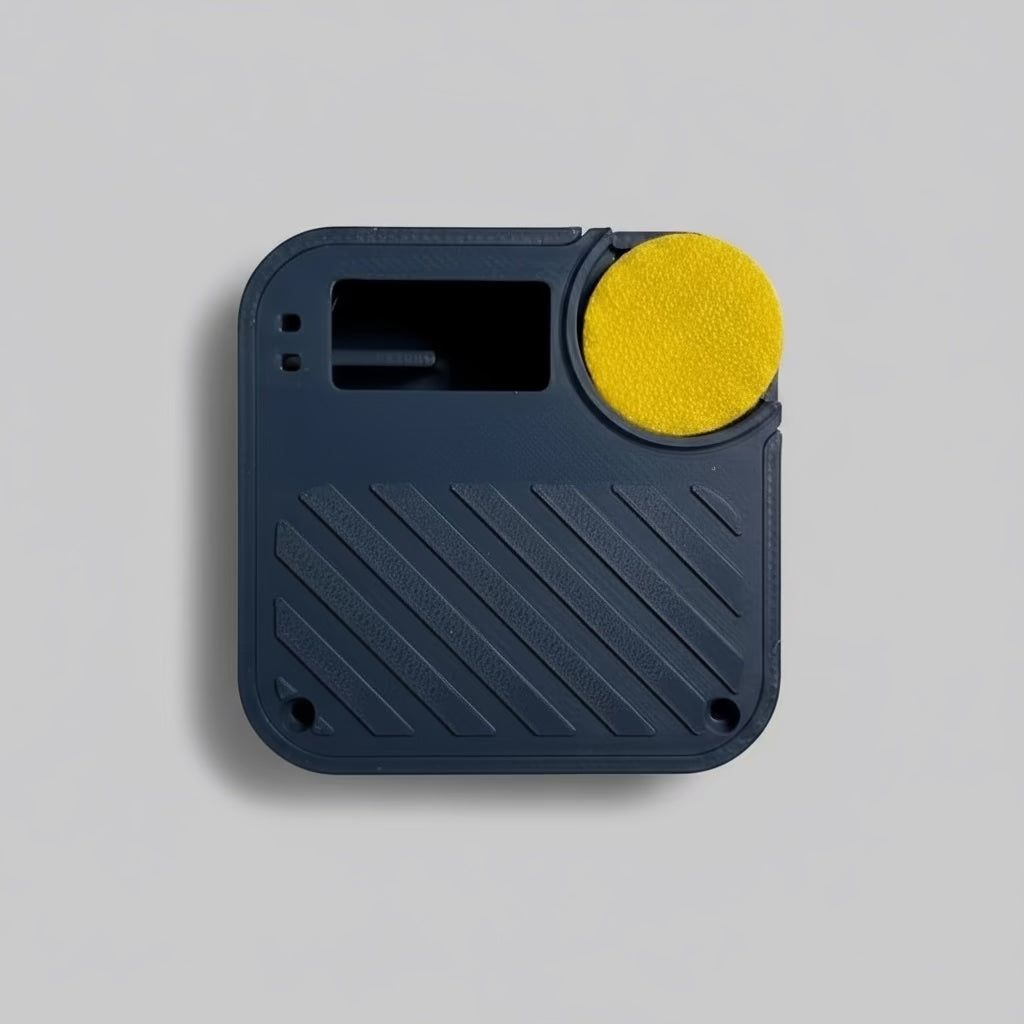

• Internal Ant Version – Designed for boards with built-in PCB or chip antennas. Compact form factor with full enclosure.

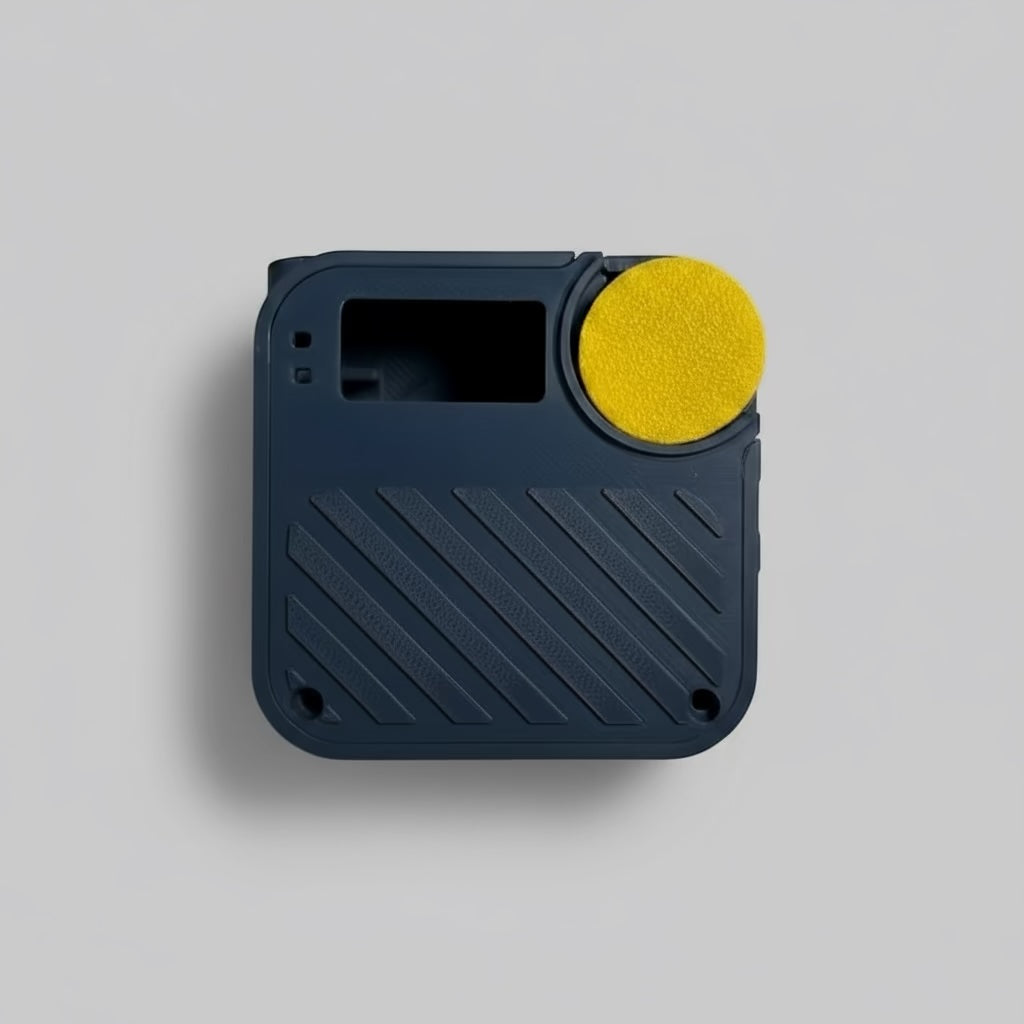

• Ext Ant Port Version – Features a dedicated cutout for external LoRa antennas (SMA connectors). Ensures optimal RF performance for long-range applications.

Key Features

• Precision-fit design for perfect alignment
• Full access to USB-C, reset button, and GPIO headers
• Lightweight yet durable construction
• Supports partial FoBE Flexible expansion modules
• Internal Li-Po battery support


Battery Compatibility (for Protective Case versions)

The FoBE Mesh Tracker C1 protective case is designed to protect the FoBE Mesh Tracker C1 development board(F2102) and provides space for an optional compact internal LiPo battery.

Supported battery specifications:

• Type: Single-cell Lithium-polymer rechargeable battery (3.7V nominal, 4.2V full charge)
• Connector: MX1.25 2-pin
• Maximum physical dimensions: 12 mm (T) × 30 mm (W) × 50 mm (L)
• Built-in protection circuit (PCM) is strongly recommended

❗️❗️❗️ IMPORTANT: Always verify polarity before connecting the battery!

• Connect board "+" terminal to battery positive (typically red wire).
• Connect board "−" terminal to battery negative (typically black wire).

⚠️ ⚠️⚠️REVERSED POLARITY WILL IMMEDIATELY DAMAGE THE BOARD AND MAY CAUSE THE BATTERY TO OVERHEAT, LEAK, CATCH FIRE, OR EXPLODE.

Damage caused by reverse polarity is not covered under warranty.

Verified compatible batteries (perfect or near-perfect fit):

• 103047 → 10×30×47–48 mm | 1500–1800 mAh
• 112945 → 11×29×45–46 mm | 1400–1600 mAh
• 903048 → 9×30×48 mm | 1500–1700 mAh
• 803048 → 8×30×48–49 mm | 1200–1500 mAh


Note:

• Batteries with built-in protection PCB/PCM are typically 0.5–2 mm thicker or longer.
• Actual dimensions and capacity may vary slightly by manufacturer. Please refer to the specific parameters provided by your supplier.
• Batteries can be purchased from Amazon, AliExpress, or qualified local suppliers.
