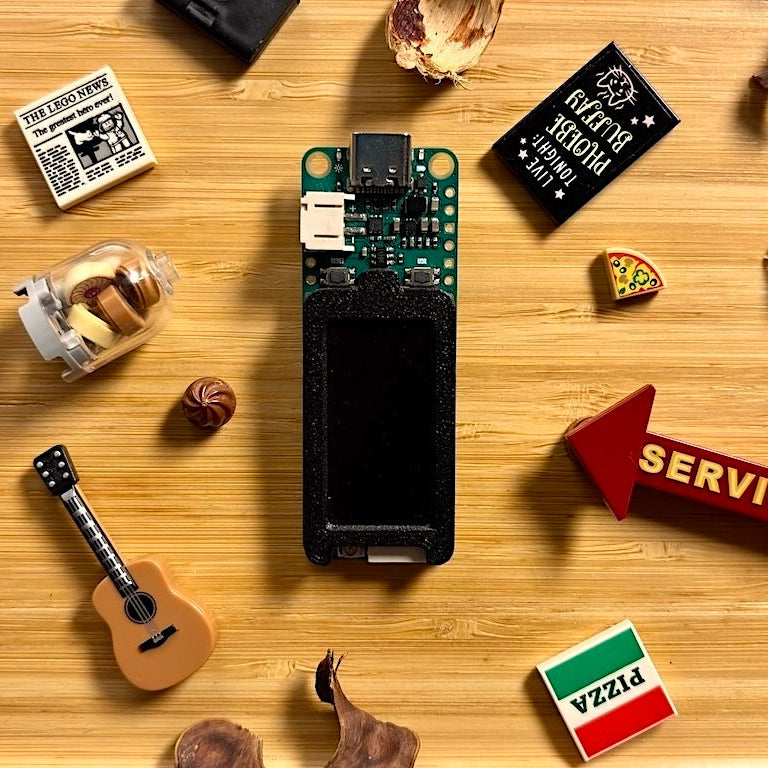

• FoBE Quill ESP32S3 Mesh development board with 1.3-inch OLED display and LoRa antenna

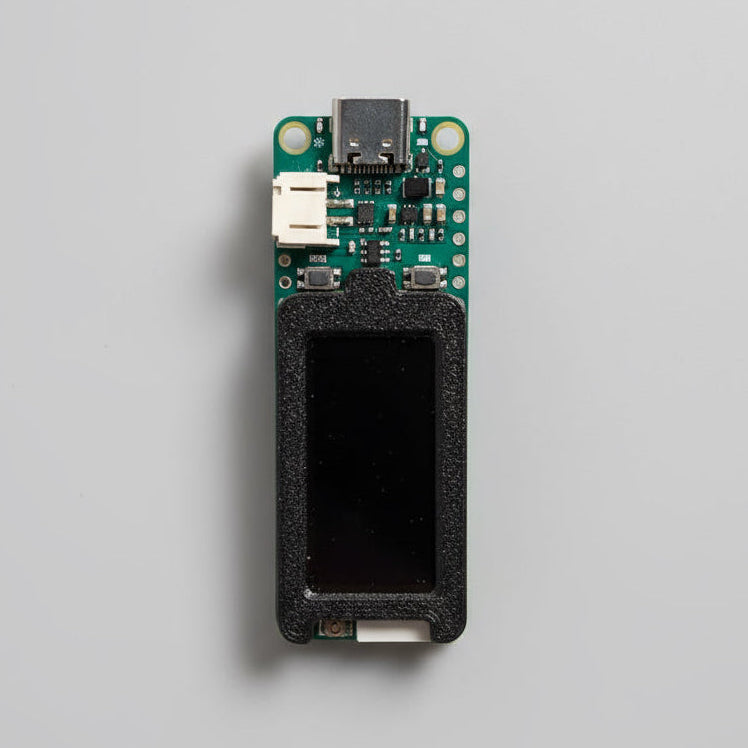

  • FoBE Quill ESP32S3 Mesh IoT board showing ESP32-S3 SoC and SX1262 LoRa module

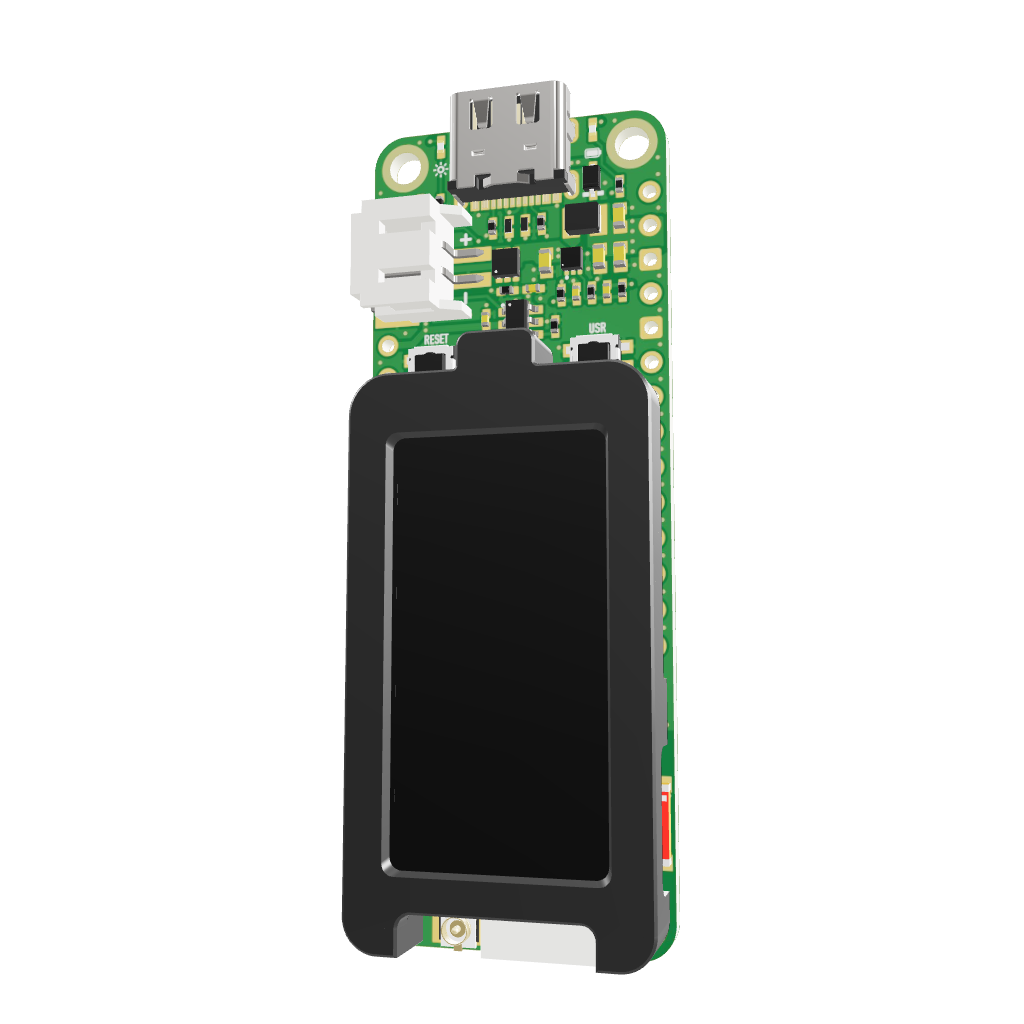

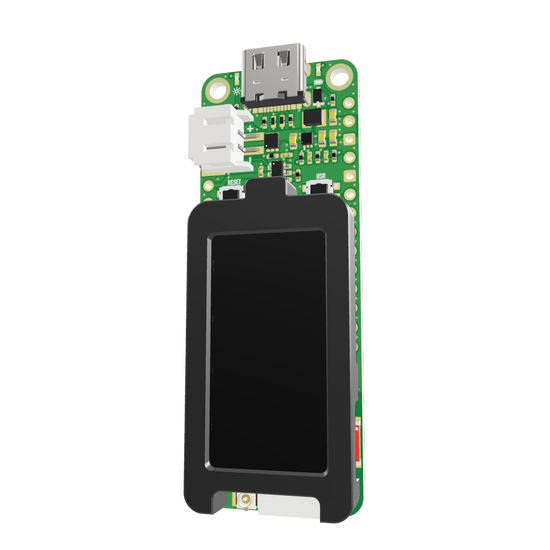

  • 3D Model Detail View of the FoBE Quill ESP32S3 Mesh IoT Board

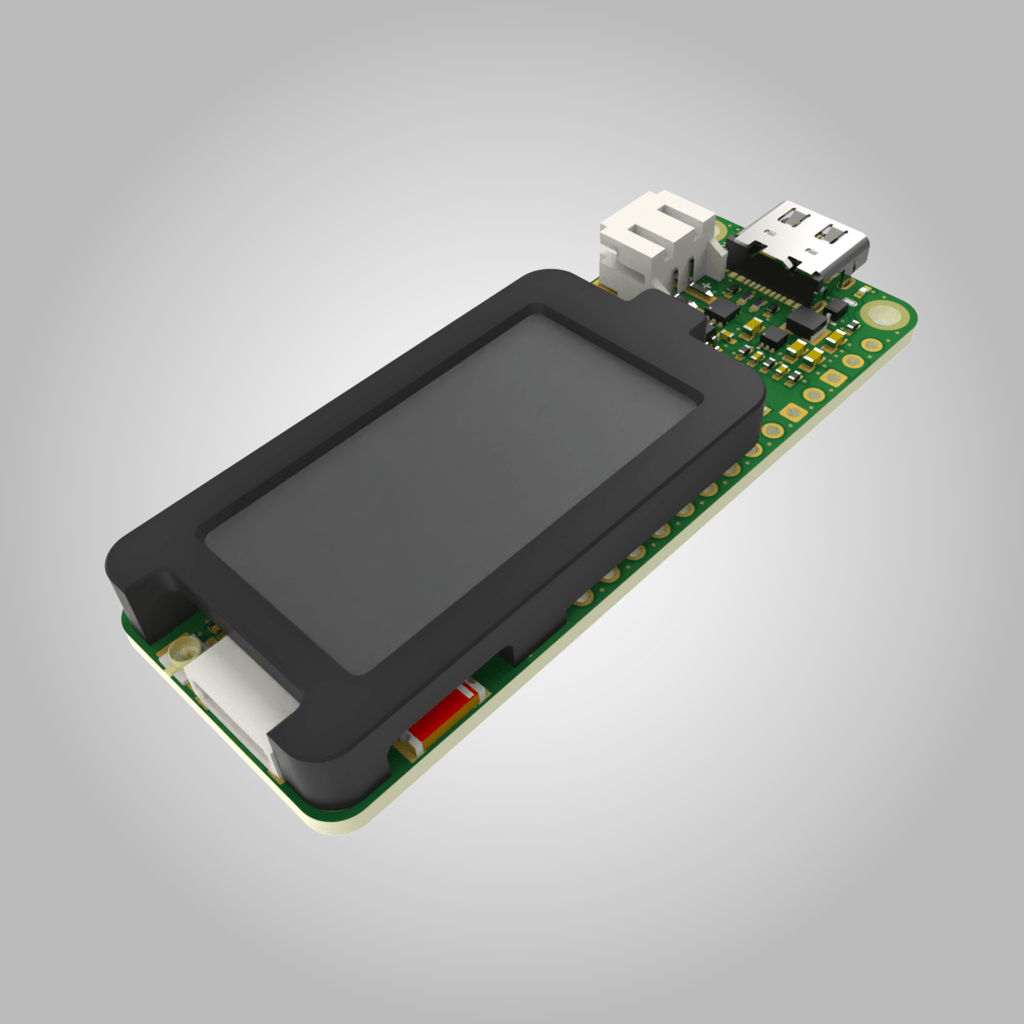

  • FoBE Quill ESP32S3 Mesh advanced Wi-Fi Bluetooth and LoRa development board with ESP32-S3 dual-core
1 4

FoBE Studio

FoBE Quill ESP32S3 Mesh - Advanced ESP32S3 LoRa Development Board

FoBE Quill ESP32S3 Mesh - Advanced ESP32S3 LoRa Development Board

F1102.1

$22.40 USD
$22.40 USD
Sale Sold out
Shipping calculated at checkout.

In stock

LoRa Band
Board Color: Green
Display
View full details

FoBE Quill ESP32S3 Mesh

The FoBE Quill ESP32S3 Mesh is a compact and feature-rich IoT development platform, integrating Espressif's high-performance multi-protocol SoC ESP32-S3 and Semtech's ultra-low-power sub-GHz radio transceiver SX1262. Designed for IoT applications, it provides a comprehensive wireless connectivity solution supporting IEEE 802.11 b/g/n Wi-Fi, Bluetooth 5, Thread, Zigbee, and LoRa®.

This development board features efficient battery charging management, discrete power path, ultra-low quiescent current DC-DC converter, a 1.3-inch monochrome OLED display (SSD1306 compatible), user-programmable LED and button, MFP expansion connector, reversible USB-C connector, and easy-to-expand pin headers, making it ideal for rapid prototyping and development.

Tech specs

Board Name FoBE Quill ESP32S3 Mesh
SKU F1102
Microcontroller Espressif ESP32-S3FH4R2 (Dual-core Xtensa® 32-bit LX7, up to 240 MHz)
USB USB-C® Native USB OTG (Full Speed) in the ESP32-S3 Processor
Pins Digital I/O Pins 20
Analog input Pins 6 (12-bit ADC)
PWM Pins 8-channel LED, 2-channel Motor
Communication UART Yes, 3x with GDMA
I2C Yes, 2x I2C master/slave
I2S Yes, 2x
SPI Yes, 2x SPI with GDMA
CAN Yes, 1x TWAI® ISO 11898-1 CAN 2.0
Power Circuit operating voltage 3.3 V
Input voltage (VIN) 3.7 - 5 V
DC Current per I/O Pin 20 mA
Clock speed SoC up to 240MHz
Memory Integrated 4 MB Flash + 2 MB PSRAM
Wireless Integrated Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth® 5 (LE)Embedded SMD ceramic antenna
SX1262 on Board LoRa® (470 MHz for Model SLT, 868 - 915 MHz for Model SHT)iPEX-U.FL connector for sub-GHz external antenna
Display Size 1.3 inch
Panel OLED, Monochrome
Resolution 128 x 64 pixels
Driver SSD1306 compatible
Buttons Reset Yes, 1x
User (Boot for Flash) Yes, 1x
LEDs User Yes, 1x Blue
Charging Yes, 1x Orange
Connectivity Battery 3.7 V Rechargeable LiPo/Li-ion, JST PH2.0 2-Pin
MFP (Multi-Function Port) JST SH1.0 6-Pin
Debugger (JTAG) 2.54mm pitch pin header
Dimensions Width 60.96 mm
Length 22.86 mm


Hardware diagram

FoBE Quill ESP32S3 Mesh Hardware Diagram


Mechanical dimensions

FoBE Quill ESP32S3 Mesh Mechanical Dimensions

Resources

[PDF] FoBE Quill ESP32S3 Mesh Datasheet

[PDF] FoBE Quill ESP32S3 Mesh Schematic

[PDF] FoBE Quill ESP32S3 Mesh Dimension

[OBJ] FoBE Quill ESP32S3 Mesh 3D Model


Packing List

Part Quantity
FoBE Quill ESP32S3 Mesh board 1
MFP to IIC Cable (JST SH1.0 6-Pin to JST SH1.0 4-Pin) 1
14 Pin 2.54mm THT Pin Header 2
Flexible LoRa Antenna (Based on the board’s LoRa band) 1

Getting Started with FoBE Quill ESP32S3 Mesh

Refer to the documentation for further details about this product.

Documentation
