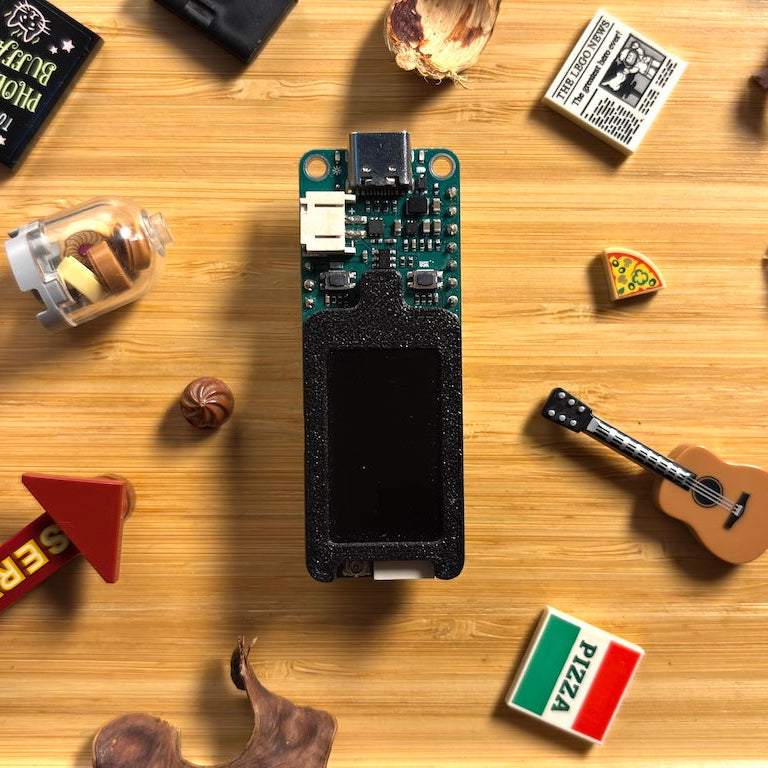

• FoBE Quill nRF52840 Mesh development board with 1.14-inch color display and LoRa antenna

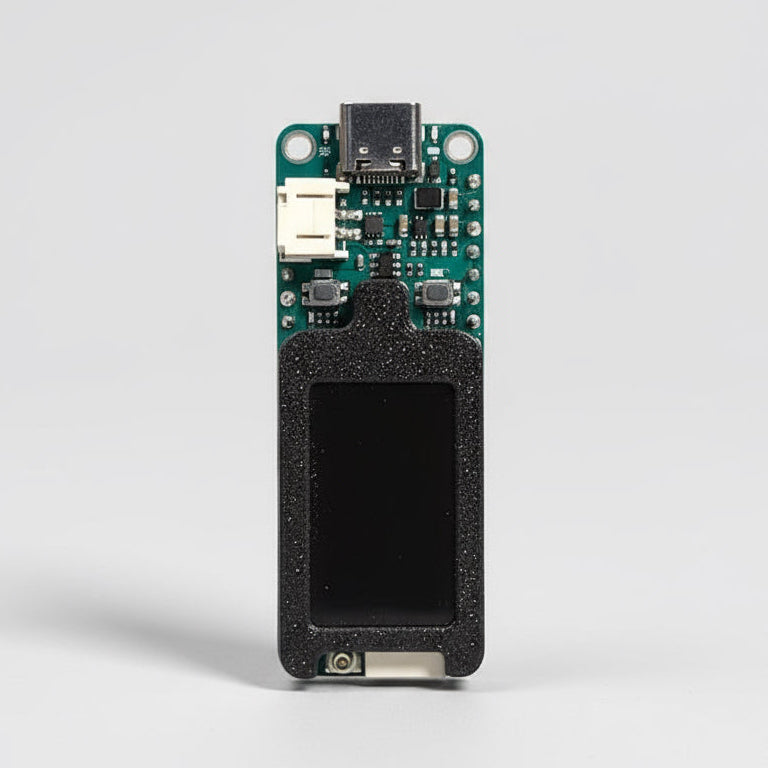

  • FoBE Quill nRF52840 Mesh IoT board showing nRF52840 SoC and SX1262 LoRa module

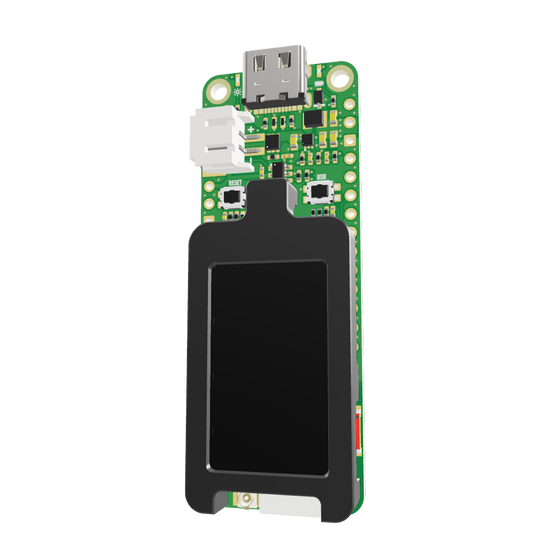

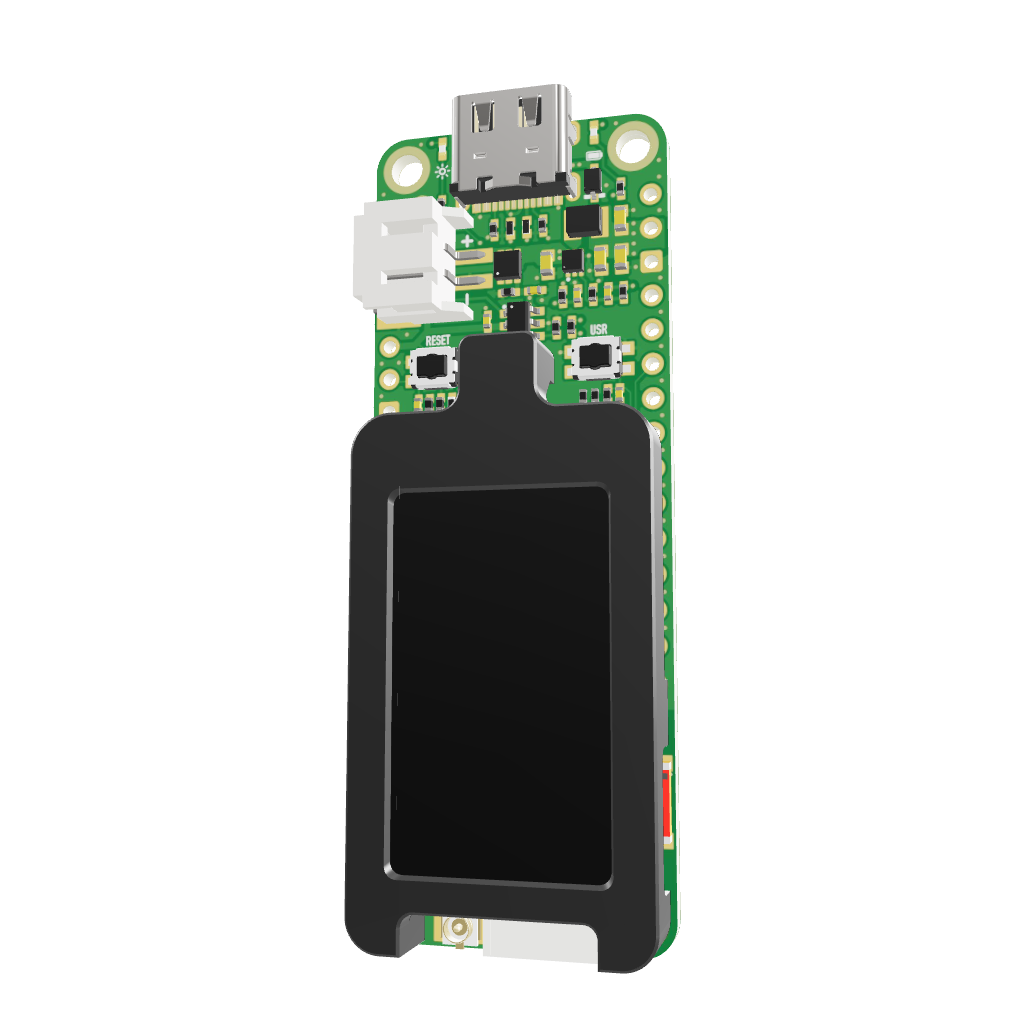

  • 3D Model Detail View of the FoBE Quill nRF52840 Mesh IoT Board

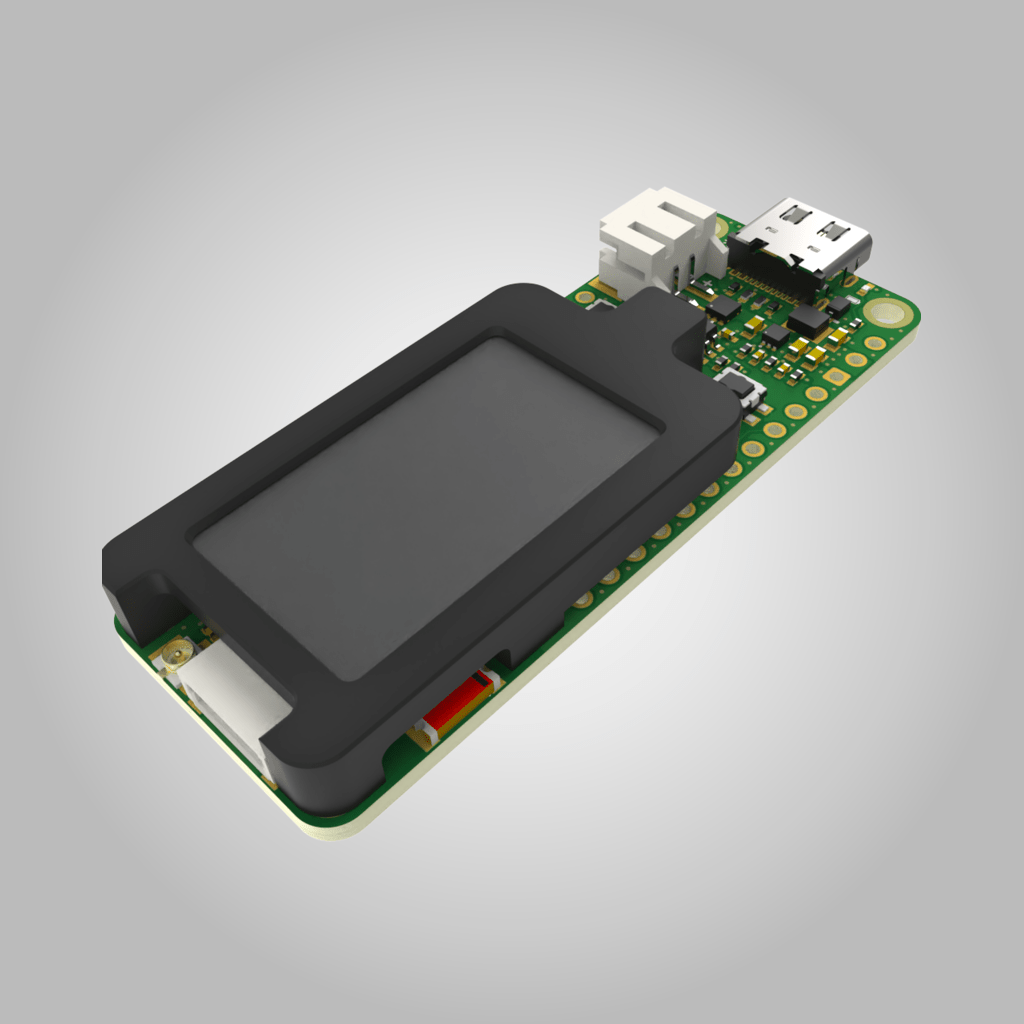

  • FoBE Quill nRF52840 Mesh advanced Bluetooth 5 Thread Zigbee and LoRa development board with nRF52840
1 4

FoBE Studio

FoBE Quill nRF52840 Mesh - Advanced nRF52840 LoRa Development Board

FoBE Quill nRF52840 Mesh - Advanced nRF52840 LoRa Development Board

F1101.1

$24.88 USD
$24.88 USD
Sale Sold out
Shipping calculated at checkout.

In stock

LoRa Band
Board Color: Green
Display
View full details

FoBE Quill nRF52840 Mesh

The FoBE Quill nRF52840 Mesh is a compact and versatile development platform for IoT solutions. It combines Nordic's high-end multiprotocol SoC, the nRF52840, with Semtech's ultra-low-power sub-GHz radio transceiver, the SX1262. Designed for IoT applications, it offers a comprehensive wireless connectivity solution, supporting protocols such as Bluetooth 5, Thread, Zigbee, IEEE 80.2.15.4, and LoRa®.

This development board is feature-rich, including a battery charger, dedicated power path management, an ultra-low quiescent current DC-DC converter, a 1.14-inch color IPS display, user-programmable LEDs and buttons, an MFP expansion connector, a reversible USB-C connector, and header sockets for easy expansion.



Tech specs

Board Name FoBE Quill nRF52840 Mesh
SKU F1101
Microcontroller Nordic nRF52840 (64 MHz Arm® Cortex-M4 with FPU)
USB USB-C® Native in the nRF52840 Processor
Pins Digital I/O Pins 20
Analog input Pins 8 (12-bit, 200 ksps)
PWM Pins 4x 4-channel
Communication UART Yes, 2x with EasyDMA
I2C Yes, 2x compatible 2-wire master/slave
SPI Yes, 4x master/3x slave with EasyDMA
CAN No
Power Circuit operating voltage 3.3 V
Input voltage (VIN) 3.7 - 5 V
DC Current per I/O Pin 15 mA
Clock speed SoC up to 64MHz
Memory Integrated 1024 kB ROM, 256 kB SRAM
Wireless Integrated Bluetooth® 5, Thread, Zigbee, IEEE 802.15.4, NFC-A Tag, 2.4 GHz proprietary
Embedded SMD ceramic antenna
SX1262 on Board LoRa® (470 MHz for Model SLT, 868 - 915 MHz for Model SHT)
iPEX-U.FL connector for sub-GHz external antenna
Display Size 1.14 inch
Panel TFT LCD, Color
Resolution 240 x 135 pixels
Driver ST7789V
Buttons Reset Yes, 1x
User Yes, 1x
LEDs User Yes, 1x Blue
Charging Yes, 1x Orange
Connectivity Battery 3.7 V Rechargeable LiPo/Li-ion, JST PH2.0 2-Pin
MFP (Multi-Function Port) JST SH1.0 6-Pin
Debugger (ARM Serial Wire Debug) 2.54mm pitch pin header
Dimensions Width 60.96 mm
Length 22.86 mm


Hardware diagram

FoBE Quill nRF52840 Mesh Hardware Diagram


Mechanical dimensions

FoBE Quill nRF52840 Mesh Mechanical Dimensions



Resources

[PDF] FoBE Quill nRF52840 Mesh Datasheet

[PDF] FoBE Quill nRF52840 Mesh Schematic

[PDF] FoBE Quill nRF52840 Mesh Dimension

[OBJ] FoBE Quill nRF52840 Mesh 3D Model



Packing List

Part Quantity
FoBE Quill nRF52840 Mesh board 1
MFP to IIC Cable (JST SH1.0 6-Pin to JST SH1.0 4-Pin) 1
14 Pin 2.54mm THT Pin Header 2
LoRa Antenna (Based on the board’s LoRa band) 1

Getting Started with FoBE Quill nRF52840 Mesh

Refer to the documentation for further details about this product.

Documentation
