U.FL to SMA Female Adapter Cable
U.FL to SMA Female Adapter Cable
SKU:A0010.1
Regular price
$0.60 USD
Regular price
Sale price
$0.60 USD
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability

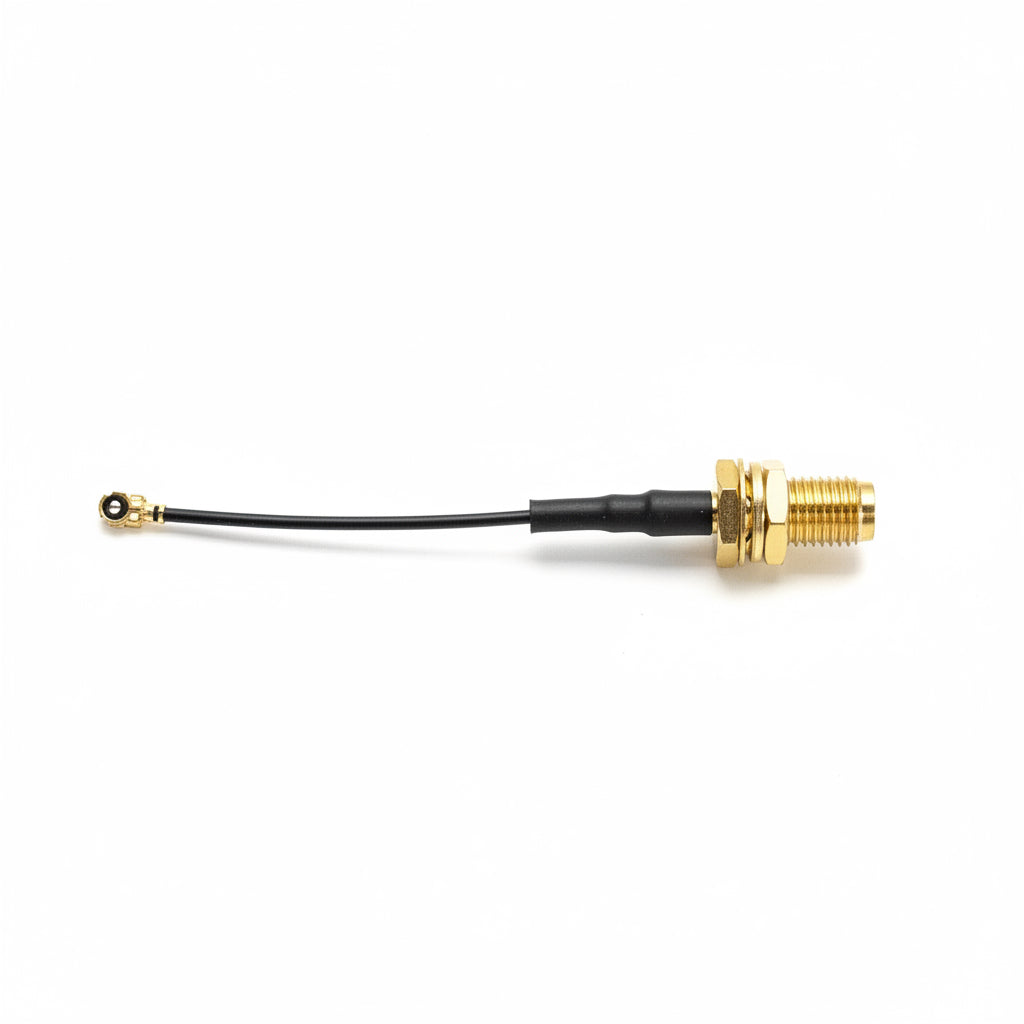

U.FL to SMA Female Adapter Cable
The U.FL to SMA Female Adapter Cable provides a reliable connection between ultra-miniature U.FL connectors and standard SMA female interfaces. Designed for precision and minimal signal loss, it’s ideal for RF and wireless communication systems requiring compact and secure antenna connections.
Electrical Properties
| Cable Type | RF1.13 |
| Cable Color | Black |
| SMA Connector Type | SMA Female (Outer Screw Inner Hole) |
| IPEX Connector Type | U.FL |
| Frequency | DC-6 GHz |
| Impedance | 50 ohm |
| V.S.W.R | ≤1.5 |
| Voltage | >500V |
| Cable Loss | ≤2.2db/m 1GHz |
| Insulation Resistance | ≥500 M ohm |
| SMA Connector Pull Test | 3KG |
| IPEX Connector Pull Test | 1KG |
| SMA Connector Material | CU, Gold Plated |
| IPEX Connector Material | CU, Gold Plated |
| Insulation | PTFE |
| Operating Temp | -40 ~ +65℃ |
| Storage Temp | -40 ~ +65℃ |
